Gauss

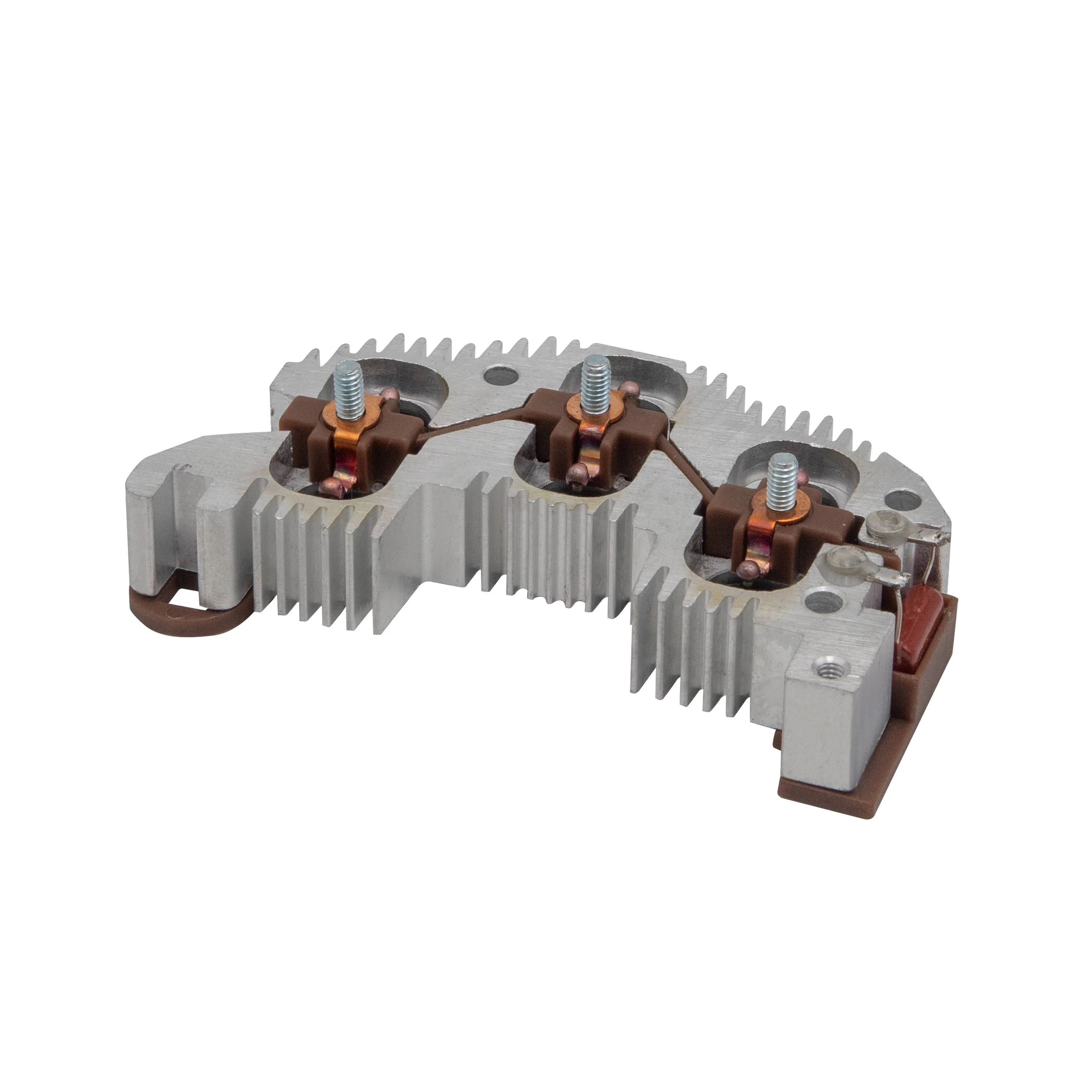

Rectifier - GA1797
Brief Specifications
Type
Avalanche
Current
70A
Diameter
Ø111mm
Specification
5/32"X 9
with Capacitor
Alternator Code
DELCO: 19010111, 19010193, 19010185, 19010182, 19010195, 19010200, 19010205, 19020307, 19020382, 19020311, 19020346, 8600277, 19011153, 19011210, 19011168, 19011175, 19011191, 19011197, 19011152, 19011173, 19011218, 19011205, 19011207
Number of Diodes
6X35A
Test Observations

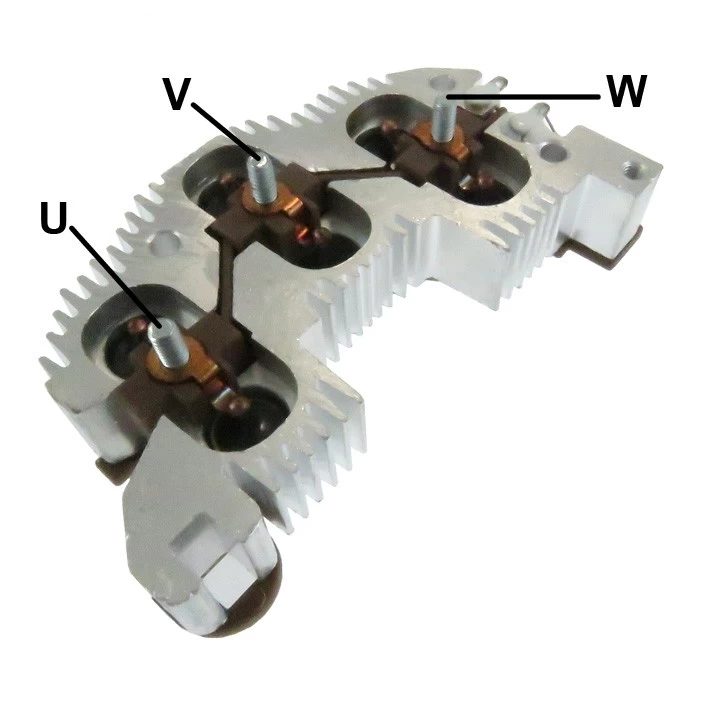

To test the rectifiers, use the regulators testing modulePositive heat sink test:• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.Negative heat sink test:• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Brief Application
Brand
Model
MERCEDES-BENZ
ACCELO914 C
MERCEDES-BENZ
FPN (FlatNose)2428
MERCEDES-BENZ
HPN (LongNose)L 1218 EL
MERCEDES-BENZ
HPN (LongNose)L 1418 EL
MERCEDES-BENZ
LK/LN2712
Type
Avalanche
Current
70A
Diameter
Ø111mm
Specification
5/32"X 9
with Capacitor
Alternator Code
DELCO: 19010111, 19010193, 19010185, 19010182, 19010195, 19010200, 19010205, 19020307, 19020382, 19020311, 19020346, 8600277, 19011153, 19011210, 19011168, 19011175, 19011191, 19011197, 19011152, 19011173, 19011218, 19011205, 19011207
Number of Diodes
6X35A
Test Observations
To test the rectifiers, use the regulators testing modulePositive heat sink test:• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.Negative heat sink test:• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
