Gauss

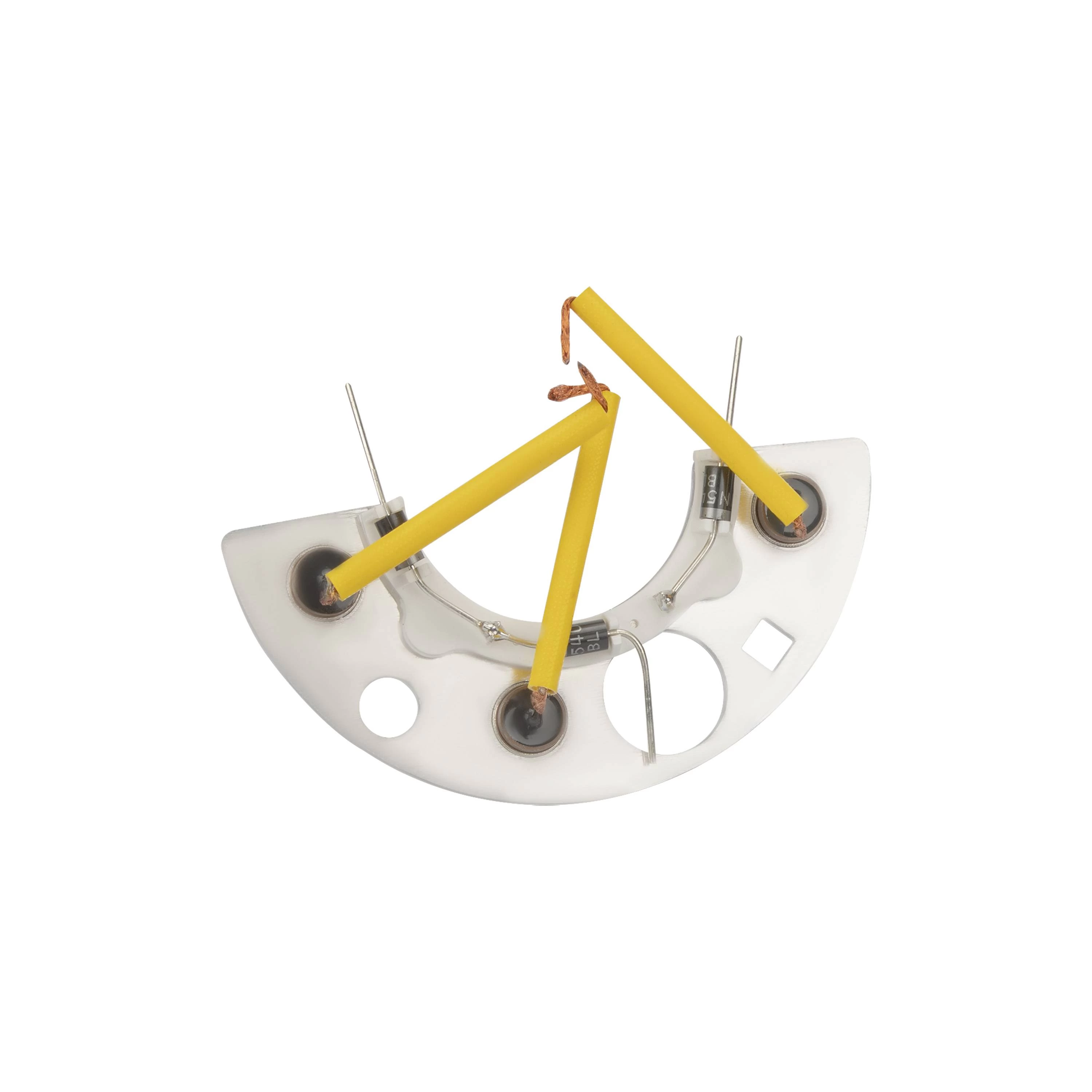

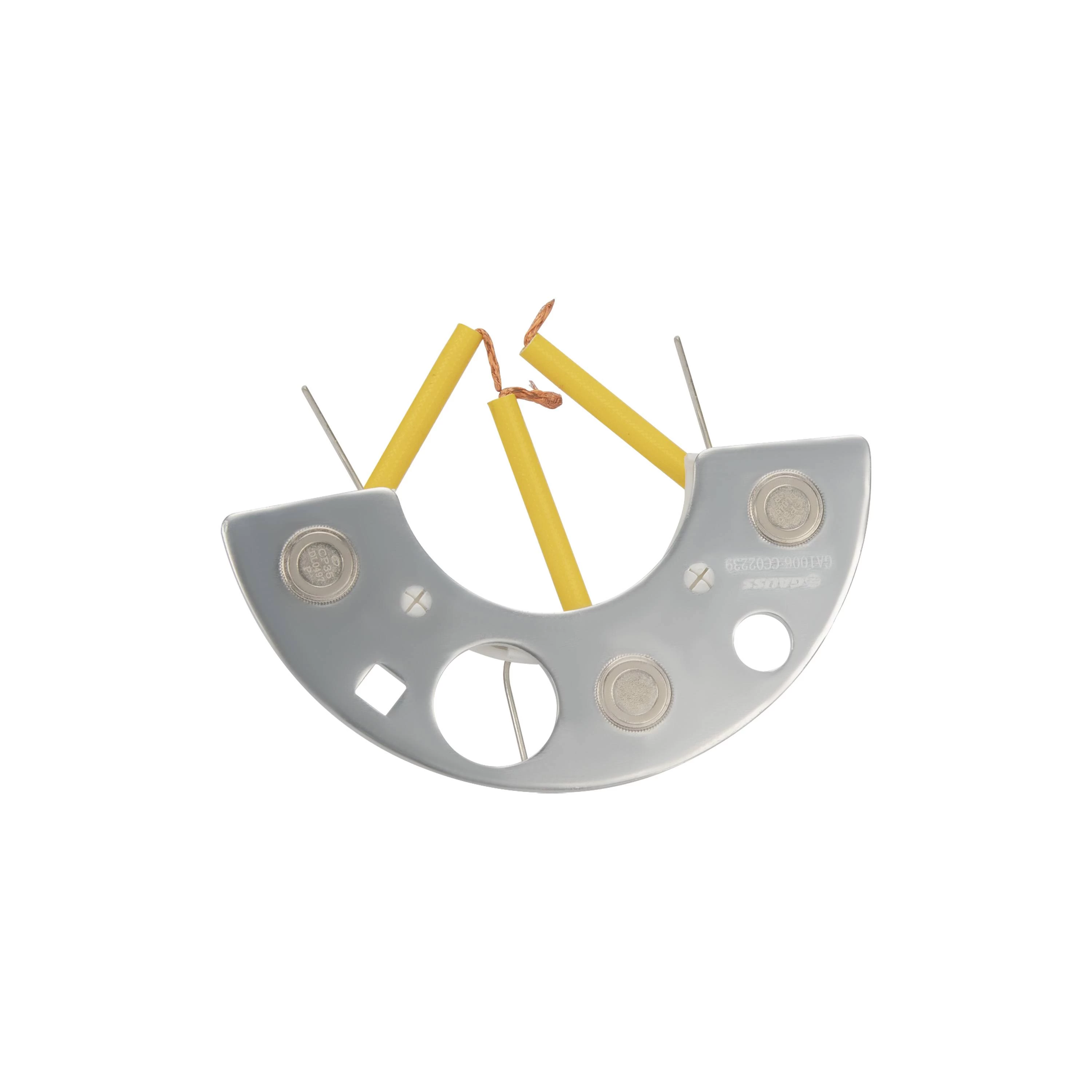

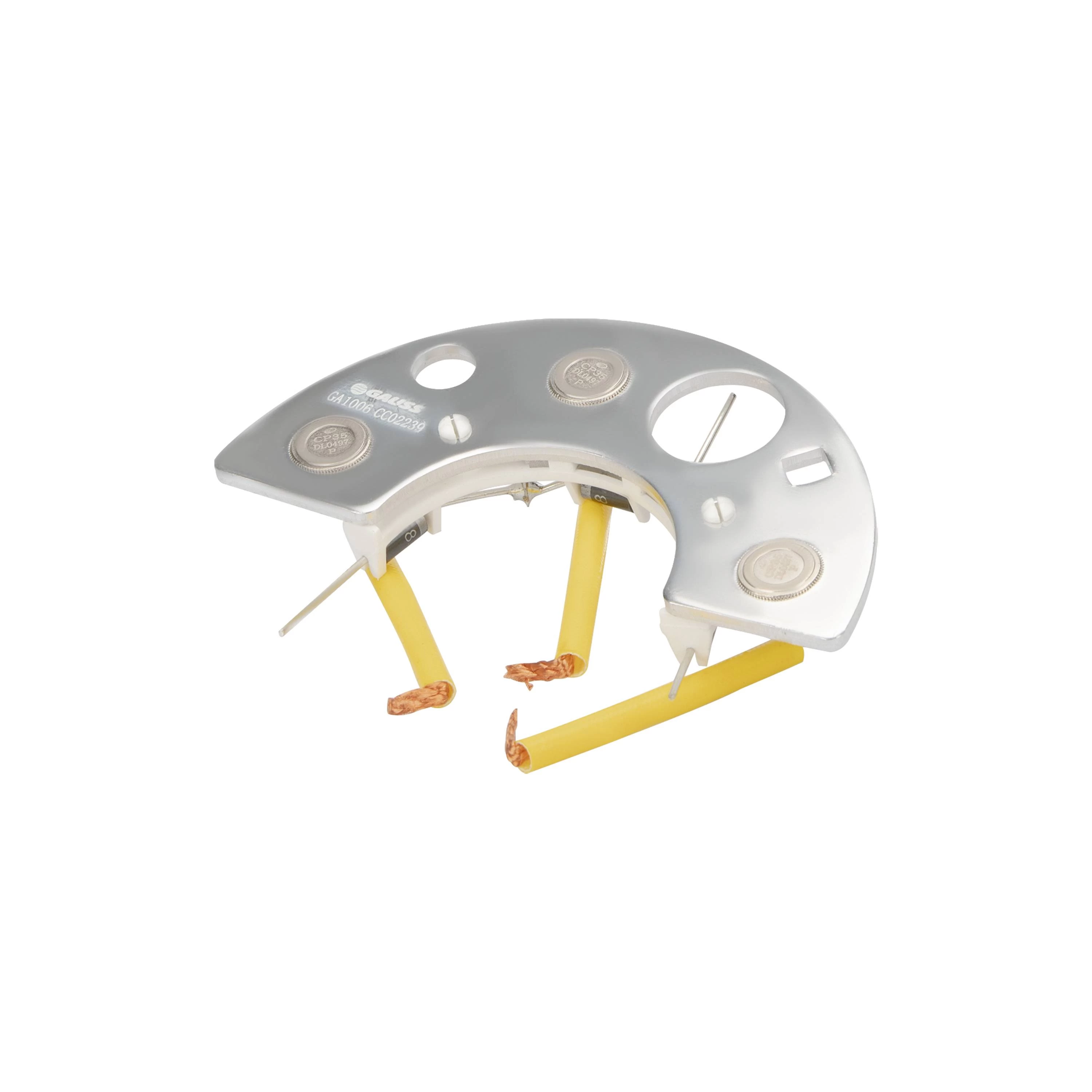

Rectifier - GA1006
Brief Specifications
Current
55A
Alternator Code
WAPSA: ARA13037, ARA14020, ARA15024, ARC13029, ARC13030, ARC14028, ARC14056, ARC15077, ARC15151, ART13035, ART13036, ART13041, ART13063, ART13136, ART15168; BOSCH: 9120450042, 9120450044, 9120450052, 9120450053, 9120450058, 9120450071, 9120450085, 9120450090, 9120450092, 9120450093, 9120450100, 9120450102, 9120450113, 9120450130, 9120450132, 9120450132
Number of Diodes
3X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Regulator Assembly
GA011 / GA058
Brief Application
Brand
Model
FORD
BELINA II
FORD
CORCEL II
FORD
DEL REY
FORD
DEL REY Turnier
FORD USA
PAMPA
VW
20007110
VW
LIGHT SERIES6.80
VW
LIGHT SERIES6.90
VW
MEDIUM SERIES11130
VW
MEDIUM SERIES11160
Current
55A
Alternator Code
WAPSA: ARA13037, ARA14020, ARA15024, ARC13029, ARC13030, ARC14028, ARC14056, ARC15077, ARC15151, ART13035, ART13036, ART13041, ART13063, ART13136, ART15168; BOSCH: 9120450042, 9120450044, 9120450052, 9120450053, 9120450058, 9120450071, 9120450085, 9120450090, 9120450092, 9120450093, 9120450100, 9120450102, 9120450113, 9120450130, 9120450132, 9120450132
Number of Diodes
3X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Regulator Assembly
GA011 / GA058
