Gauss

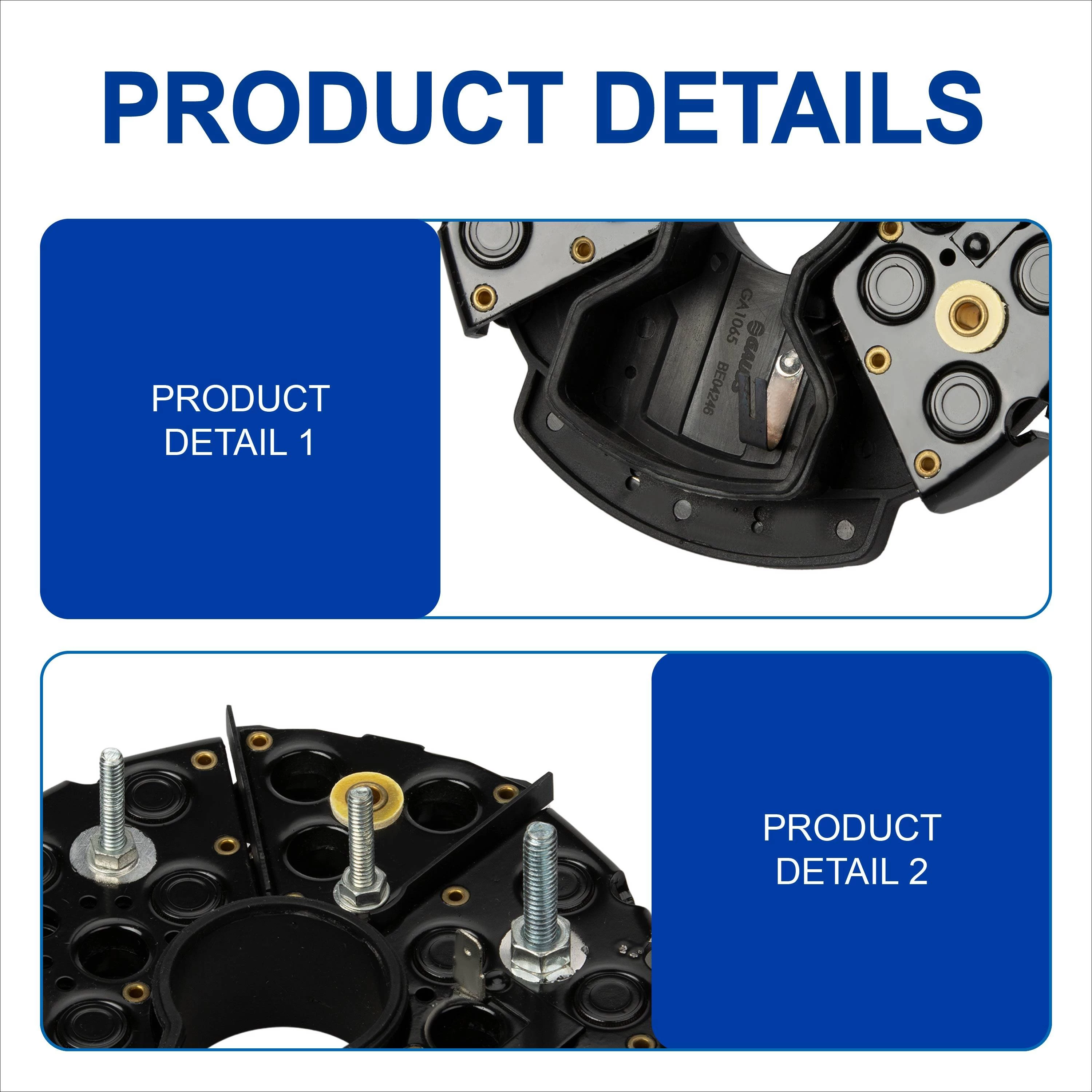

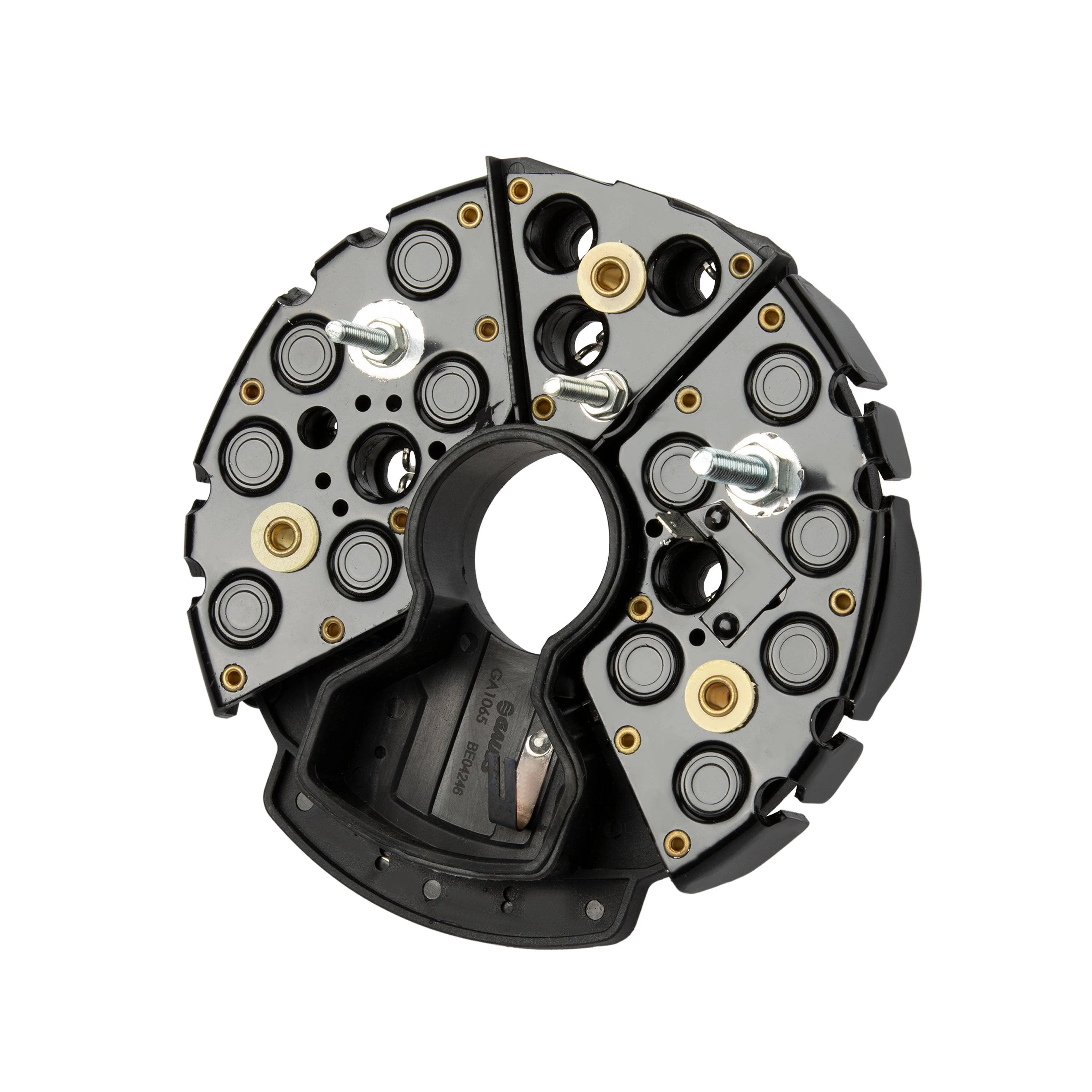

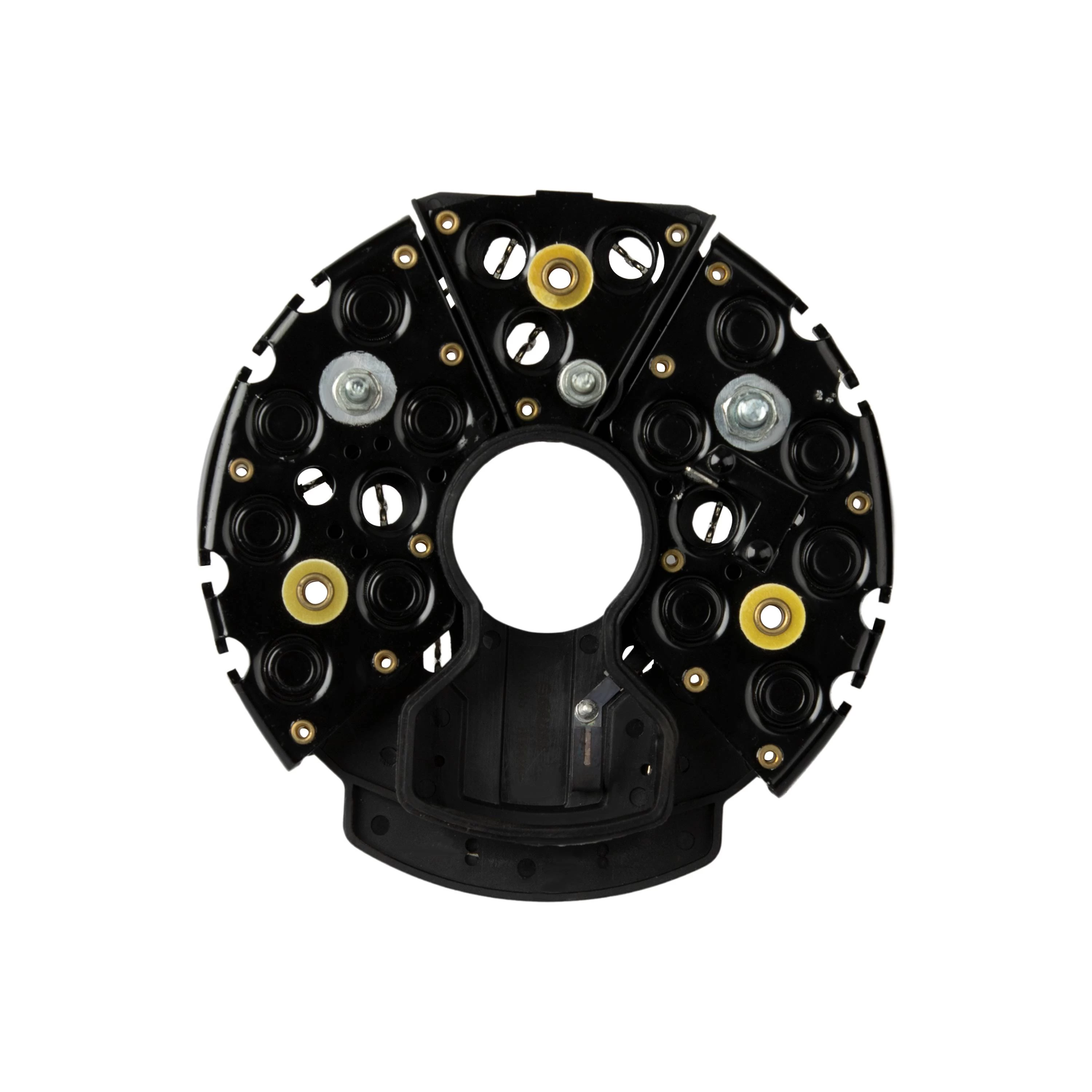

Rectifier - GA1065
Brief Specifications
Current
95A
B+ Measurement
1/4x45mm
Specification
Screw: D+ 3/16x30
Screw: W 3/16x40
Alternator Code
BOSCH 28V - 70A BOSCH: 9120456004, 9120456005, 9120456013, 9120456024, 9120456025
Number of Diodes
12X35A
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Negative heat sink test:
• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.
• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA008
Brief Application
Brand
Model
FORD
CARGO IIC1419 S
FORD
CARGO IIC1519 S
FORD
CARGO IIC1719
FORD
CARGO IIC1719 S
FORD
CARGO IIC1723 B
FORD
CARGO IIC1723 K
FORD
CARGO IIC1729 B
FORD
CARGO IIC1729 BT
FORD
CARGO IIC1731R
FORD
CARGO IIC1731T
Current
95A
B+ Measurement
1/4x45mm
Specification
Screw: D+ 3/16x30
Screw: W 3/16x40
Alternator Code
BOSCH 28V - 70A BOSCH: 9120456004, 9120456005, 9120456013, 9120456024, 9120456025
Number of Diodes
12X35A
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Negative heat sink test:
• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.
• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA008
