Gauss

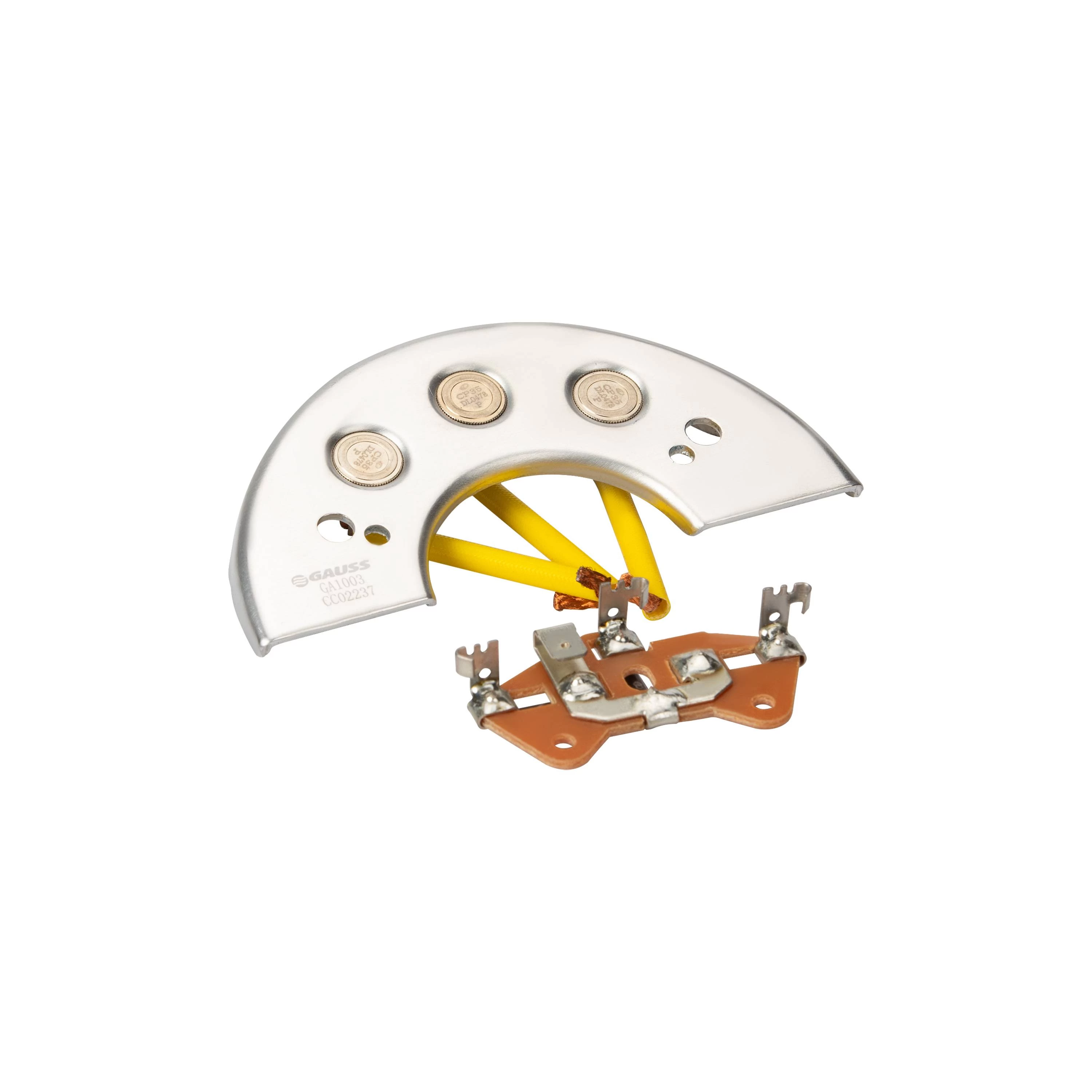

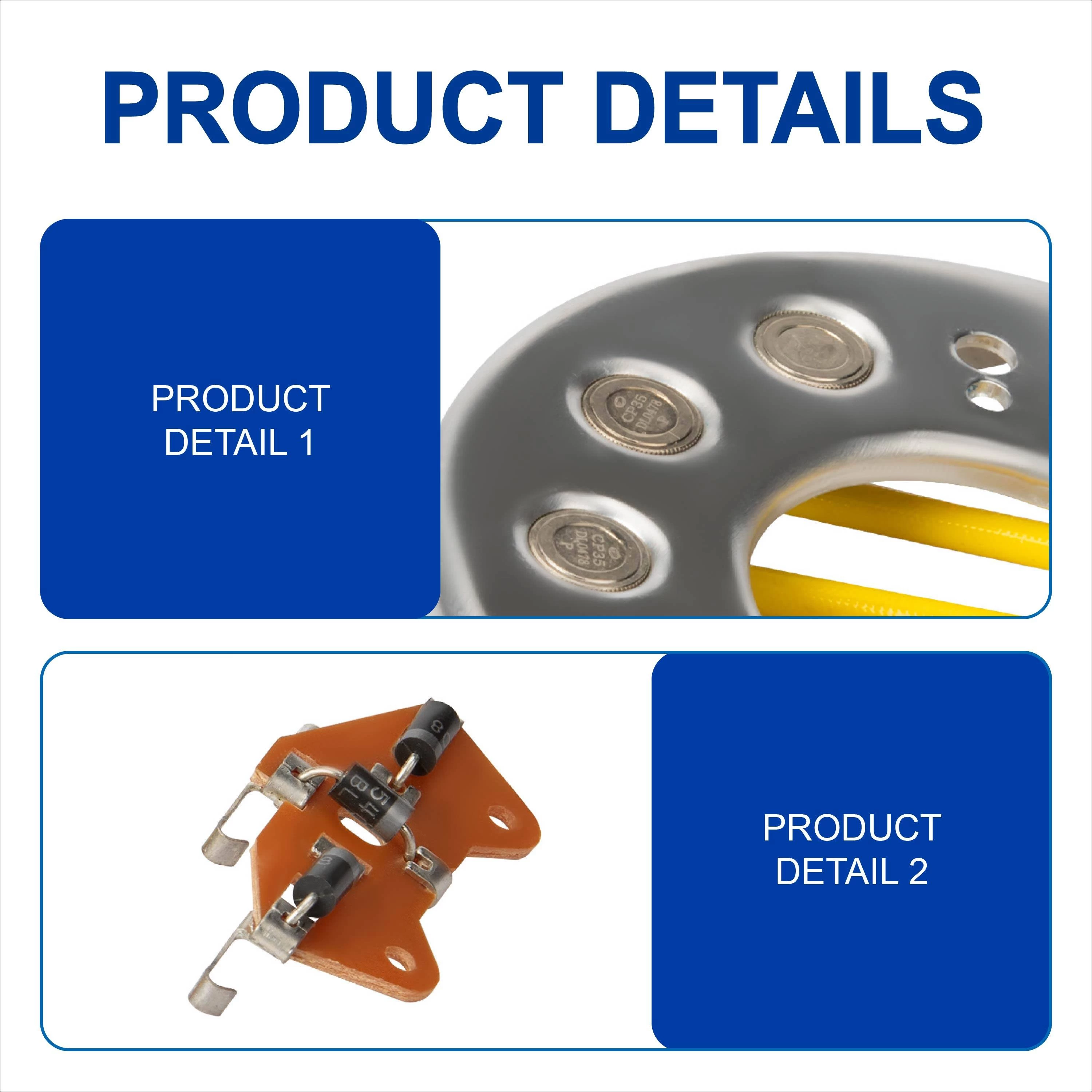

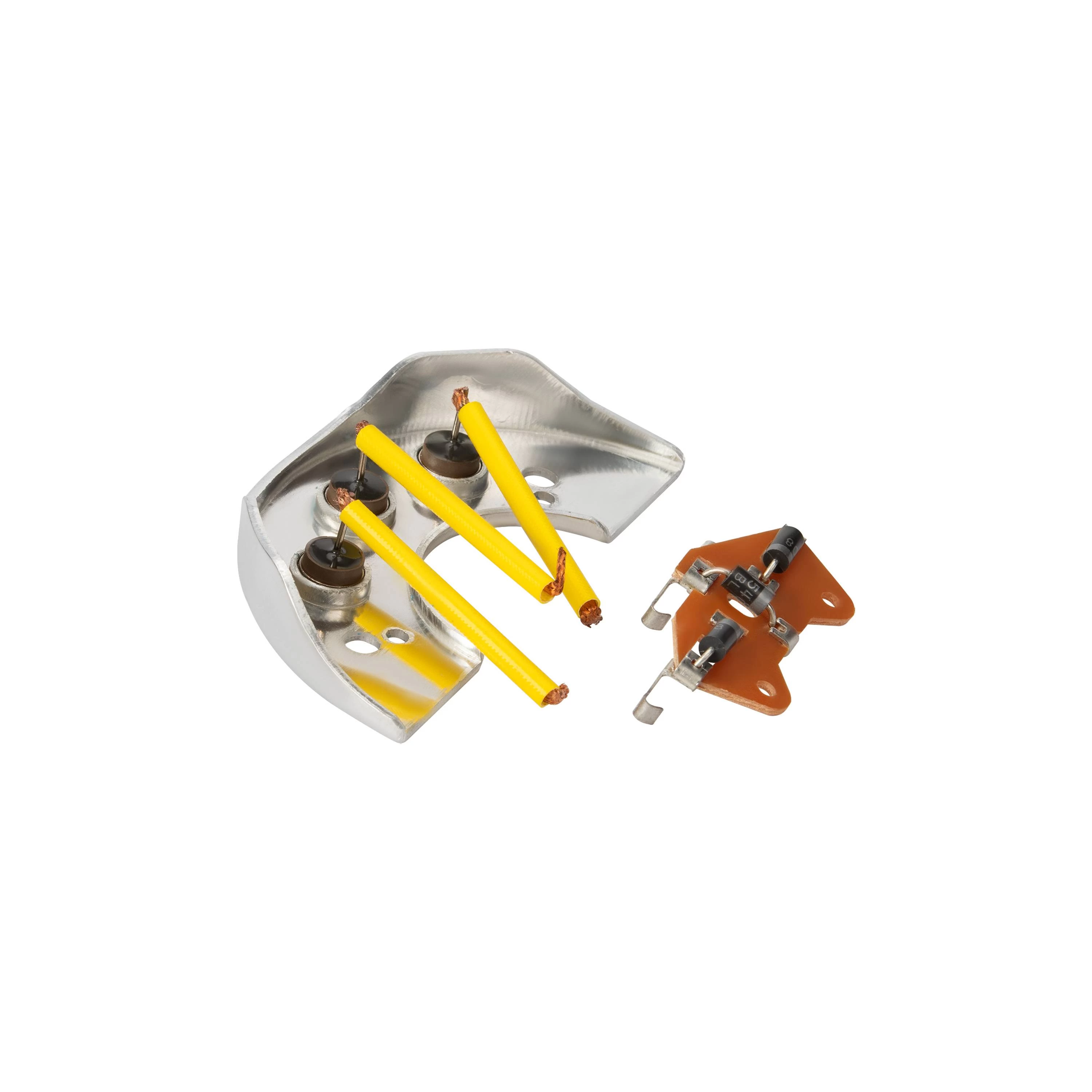

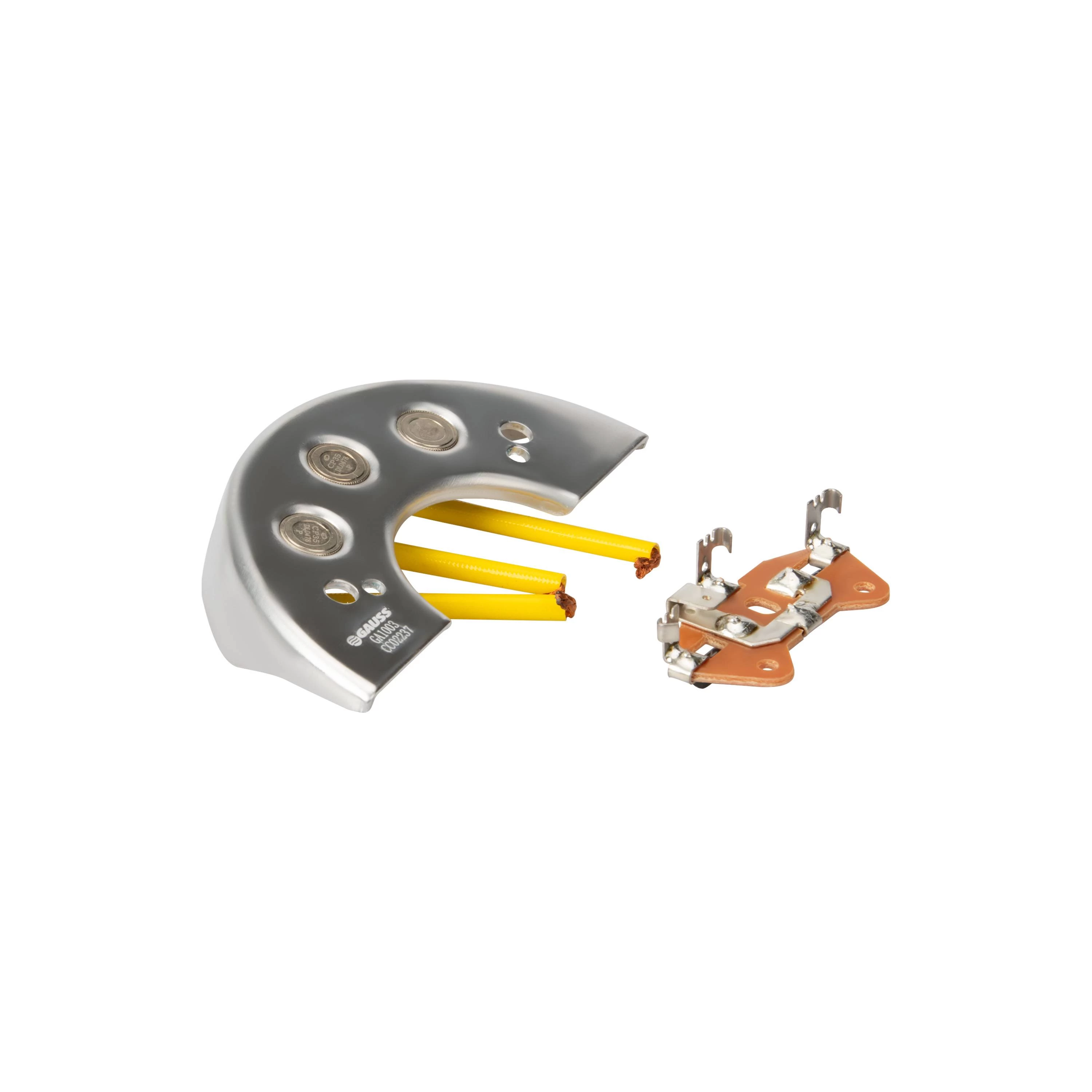

Rectifier - GA1003
Brief Specifications
Current
55A
Alternator Code
BOSCH: 9120080020, 9120080031, 9120080054, 9120080084, 9120080091, 9120080082, 9120080110, 9120080125
Number of Diodes
3X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Regulator Assembly
GA005
Brief Application
Brand
Model
FIAT
DUCATO Bus (244_)
FIAT
DUCATO Bus (250_)
FIAT
DUCATO Platform/Chassis (250_)
FIAT
DUCATO Van (244_)
FIAT
DUCATO Van (250_)
FIAT
Series 130130
FIAT
Series 140140
FIAT
Series 180180
FIAT
Series 7070
MERCEDES-BENZ
ACCELO1016
Current
55A
Alternator Code
BOSCH: 9120080020, 9120080031, 9120080054, 9120080084, 9120080091, 9120080082, 9120080110, 9120080125
Number of Diodes
3X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Regulator Assembly
GA005
