Gauss

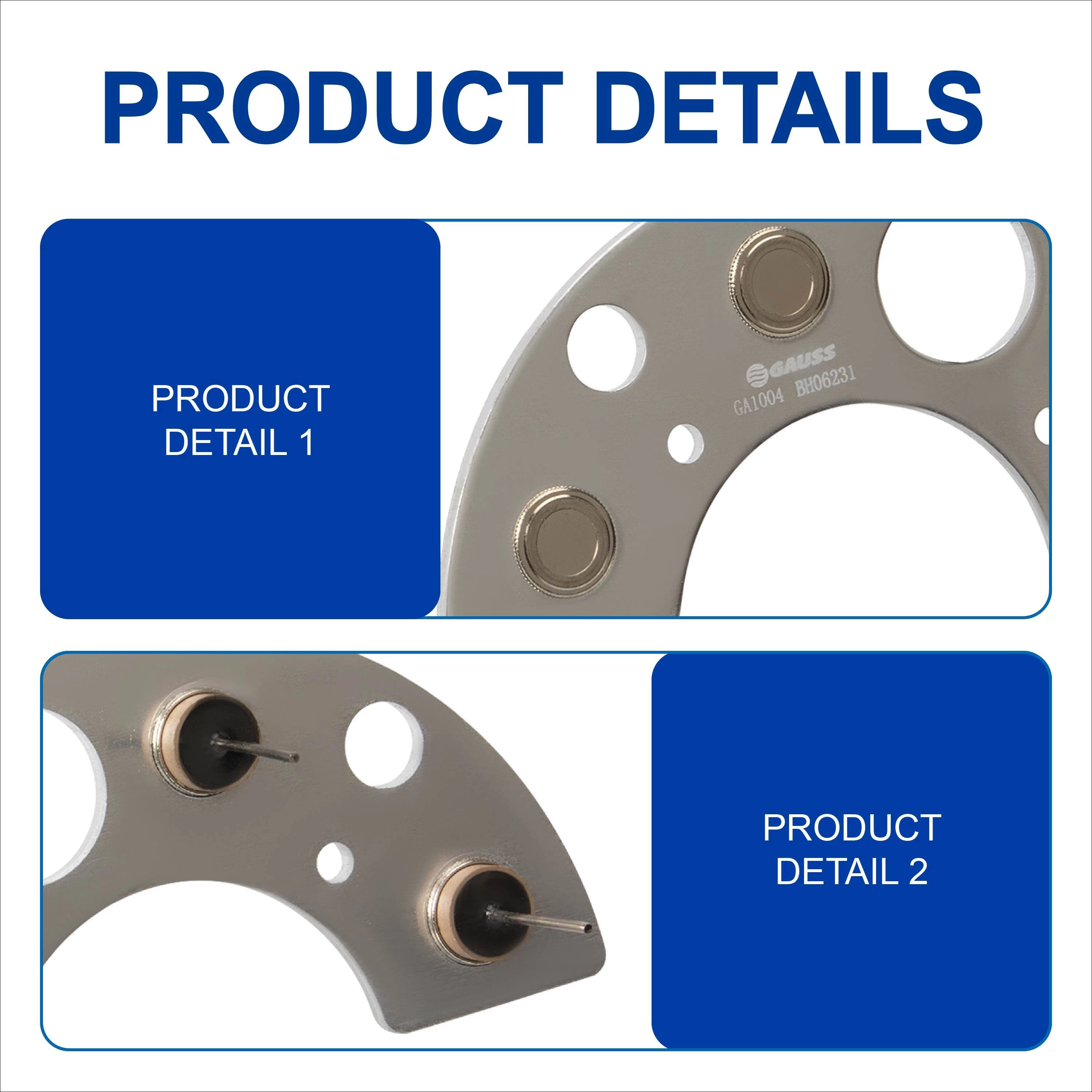

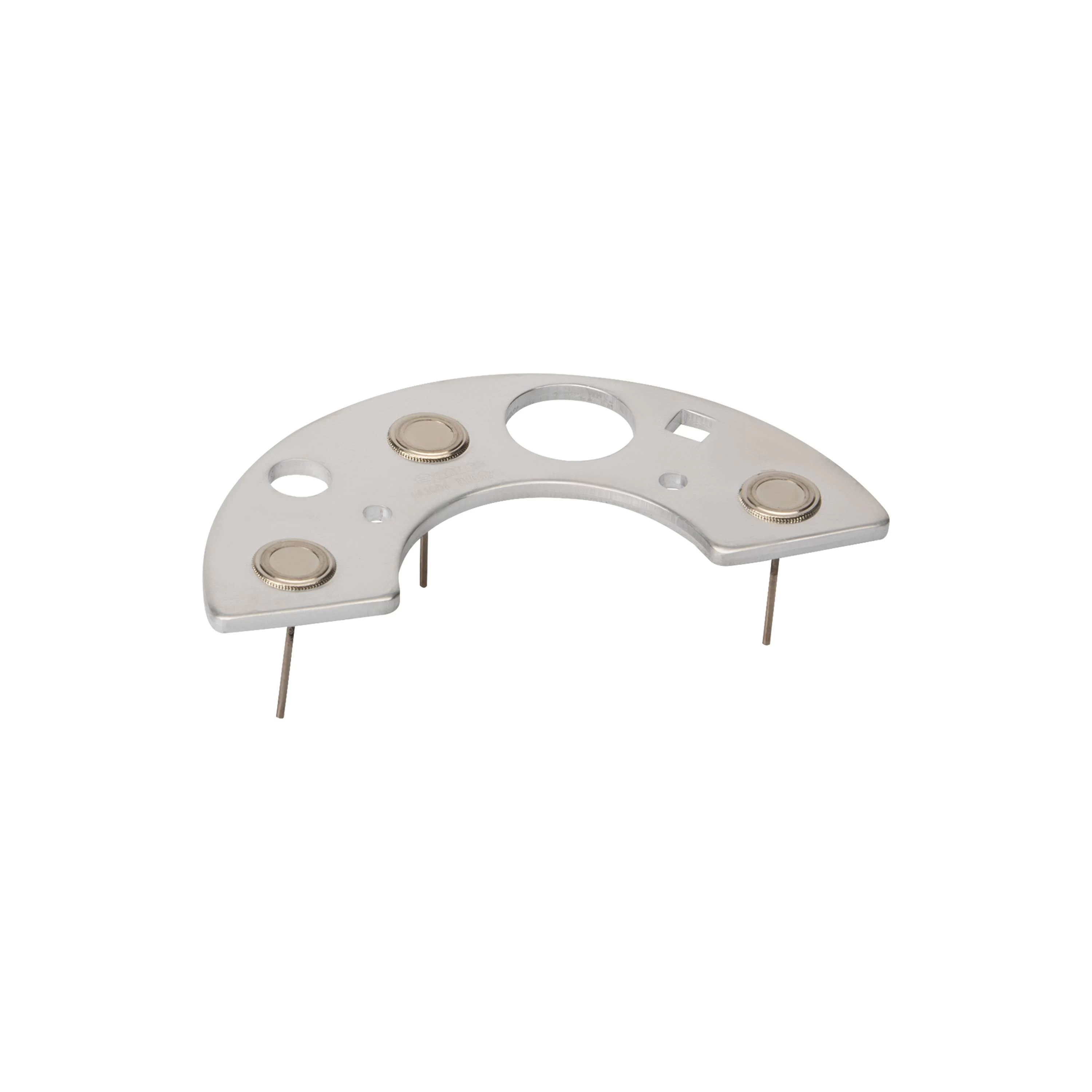

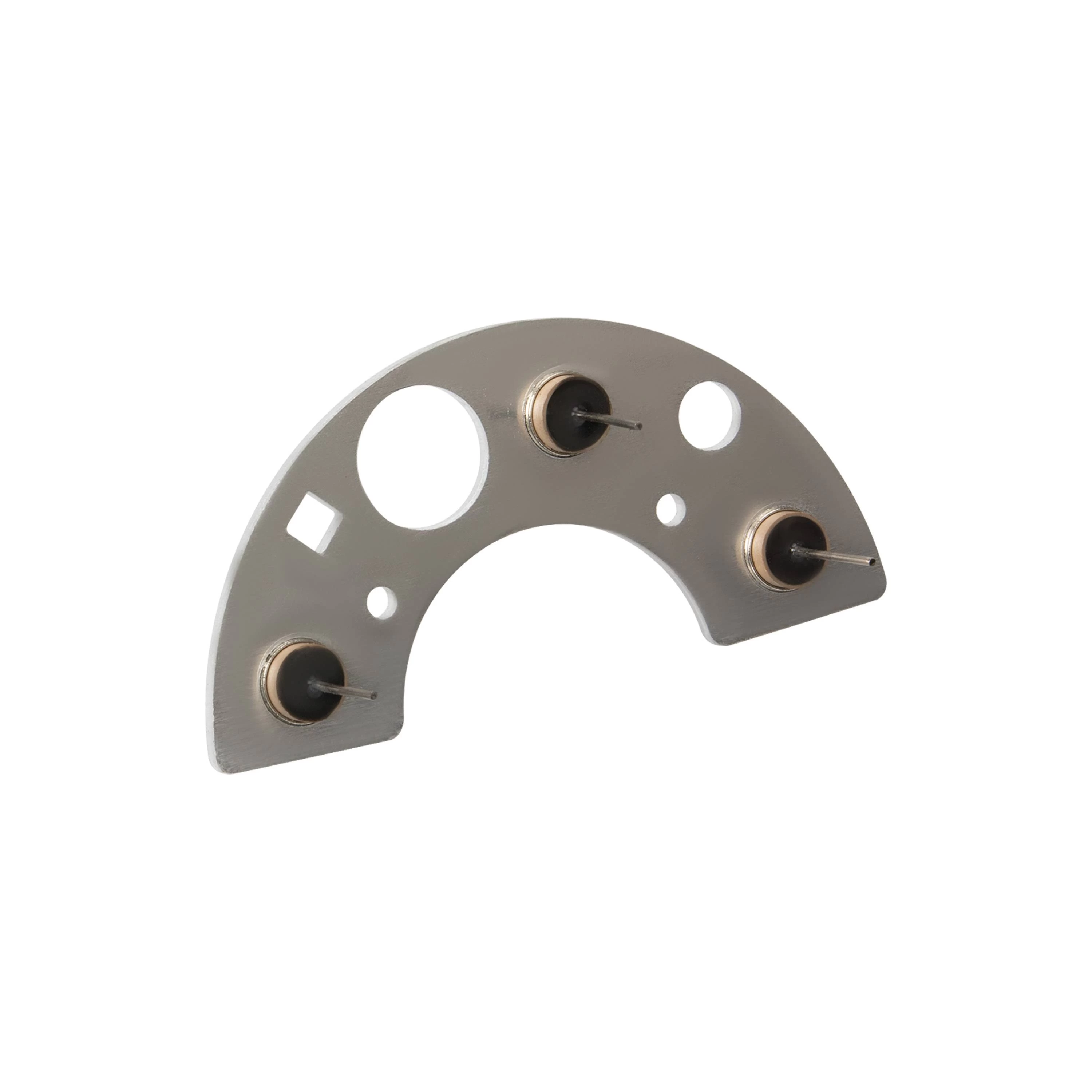

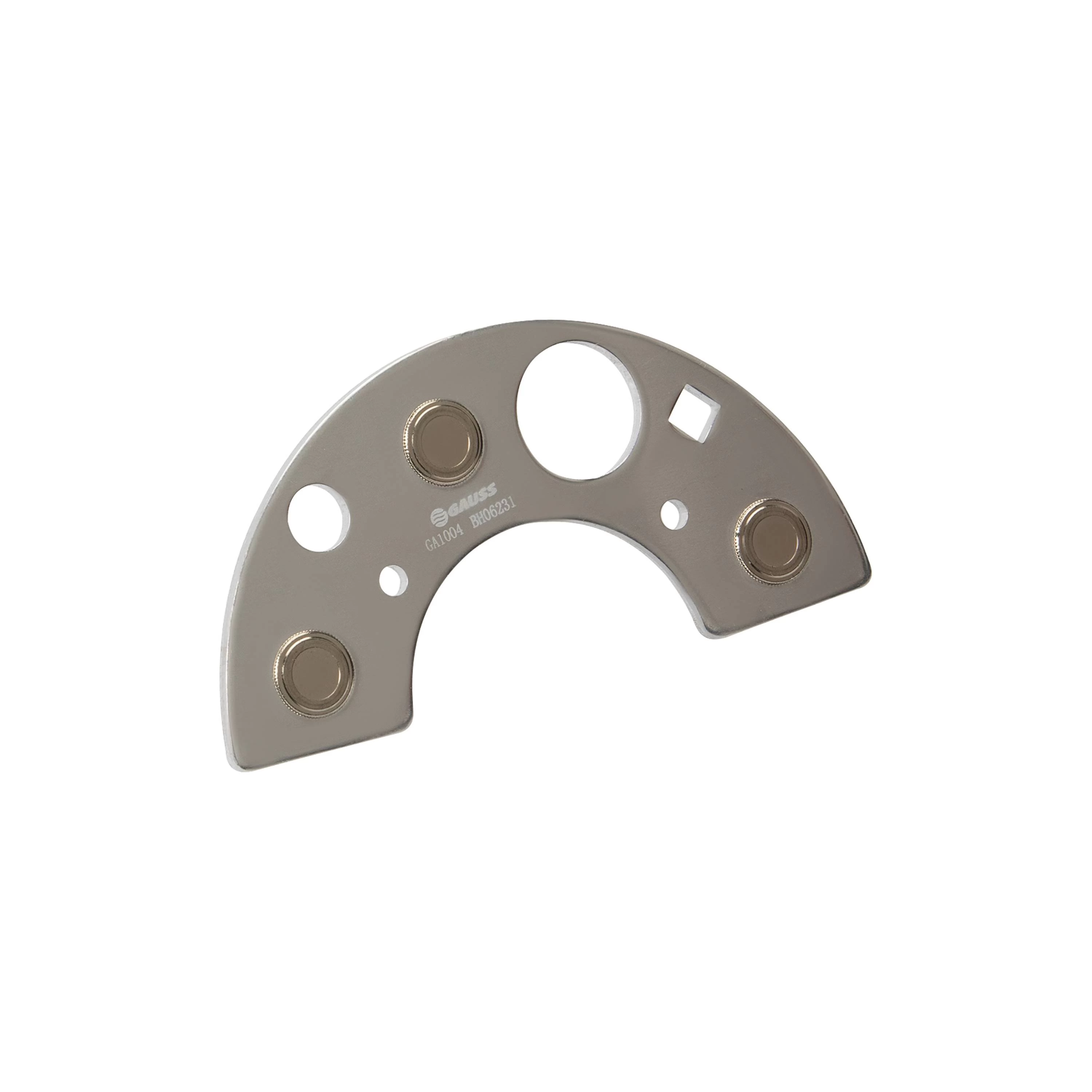

Rectifier - GA1004
Brief Specifications
Current
55A
Alternator Code
BOSCH: 9190450042, 9190450044, 9190450052, 9190450071, 9190450100, 9190450101, 9190450102, 9190450113, 9190450118, 9190450119
Number of Diodes
3X35A
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Brief Application
Brand
Model
FORD
BELINA II
FORD
CORCEL II
FORD
DEL REY
FORD
DEL REY Turnier
FORD USA
PAMPA
VW
20007110
VW
LIGHT SERIES6.90
VW
LIGHT SERIES7.90S
VW
LIGHT SERIES7110
VW
MEDIUM SERIES11130
Current
55A
Alternator Code
BOSCH: 9190450042, 9190450044, 9190450052, 9190450071, 9190450100, 9190450101, 9190450102, 9190450113, 9190450118, 9190450119
Number of Diodes
3X35A
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
