Gauss

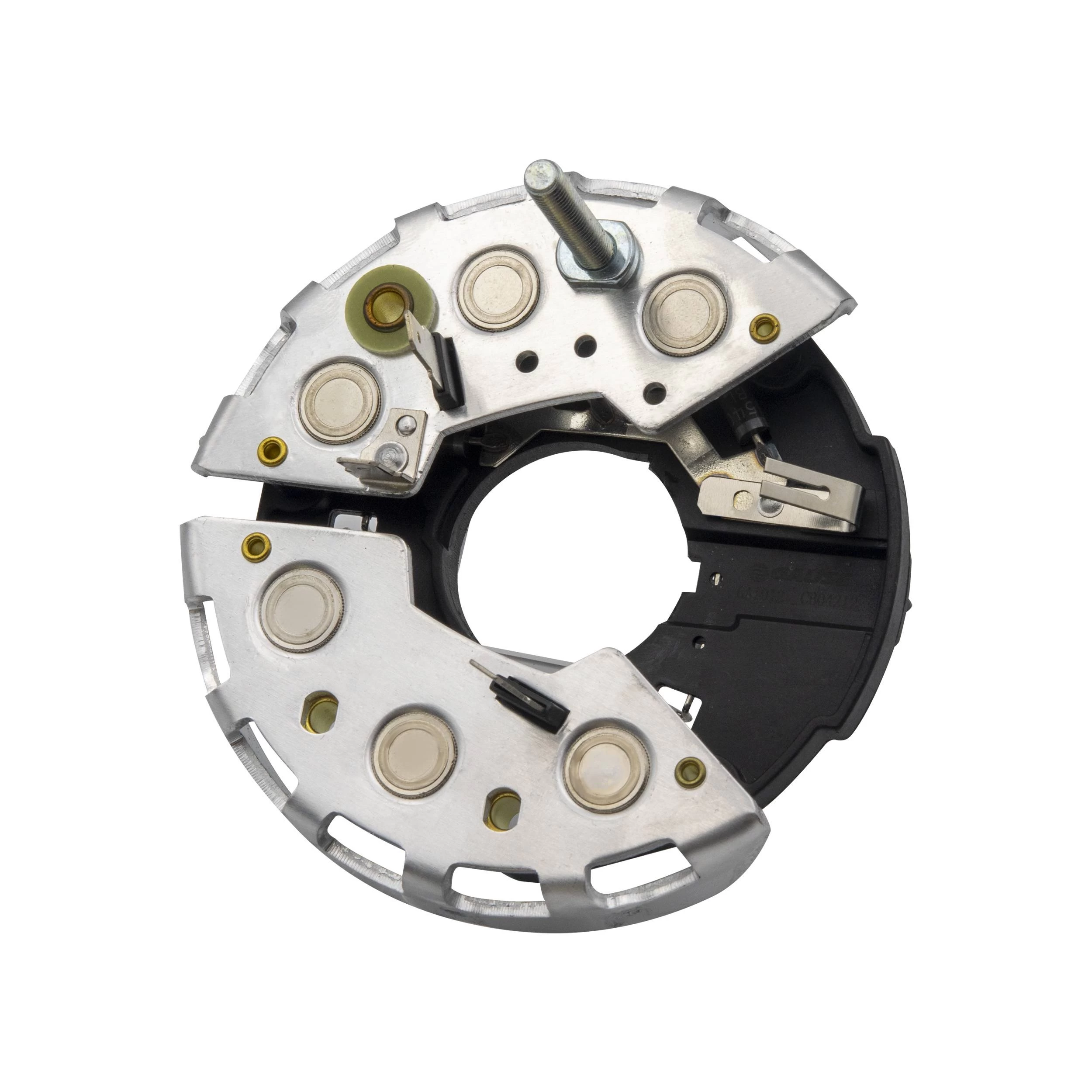

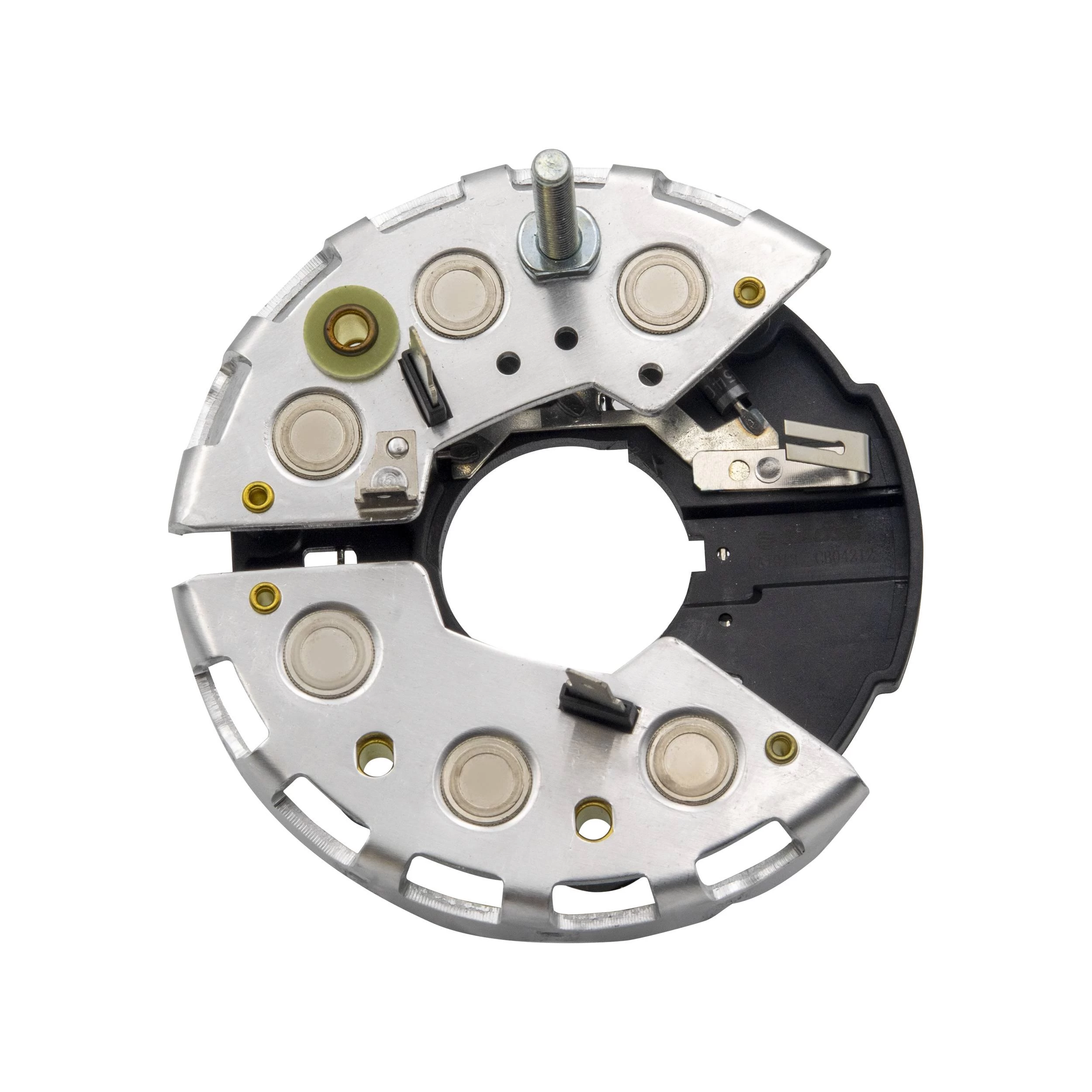

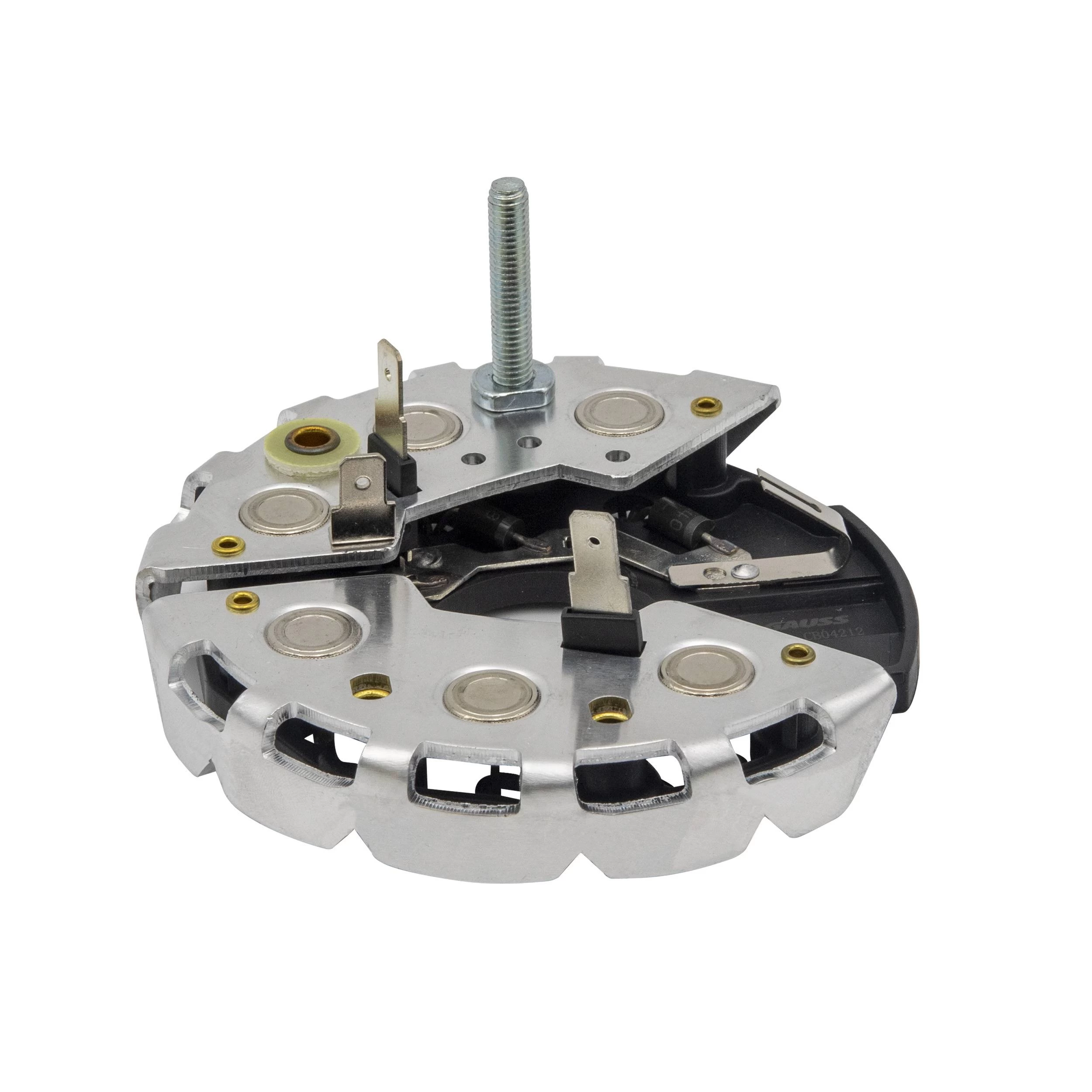

Rectifier - GA1012
Brief Specifications
Current
70A
B+ Measurement
M6x50mm
Alternator Code
BOSCH: 9120080230, 9120080212
Number of Diodes
6X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing modulePositive heat sink test:• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.Negative heat sink test:• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA040
Brief Application
Brand
Model
FORD
F1000
MERCEDES-BENZ
SPRINTER 3-t Platform/Chassis (B903)
MERCEDES-BENZ
SPRINTER 3-t Van (B903)
Current
70A
B+ Measurement
M6x50mm
Alternator Code
BOSCH: 9120080230, 9120080212
Number of Diodes
6X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing modulePositive heat sink test:• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.Negative heat sink test:• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA040
