Gauss

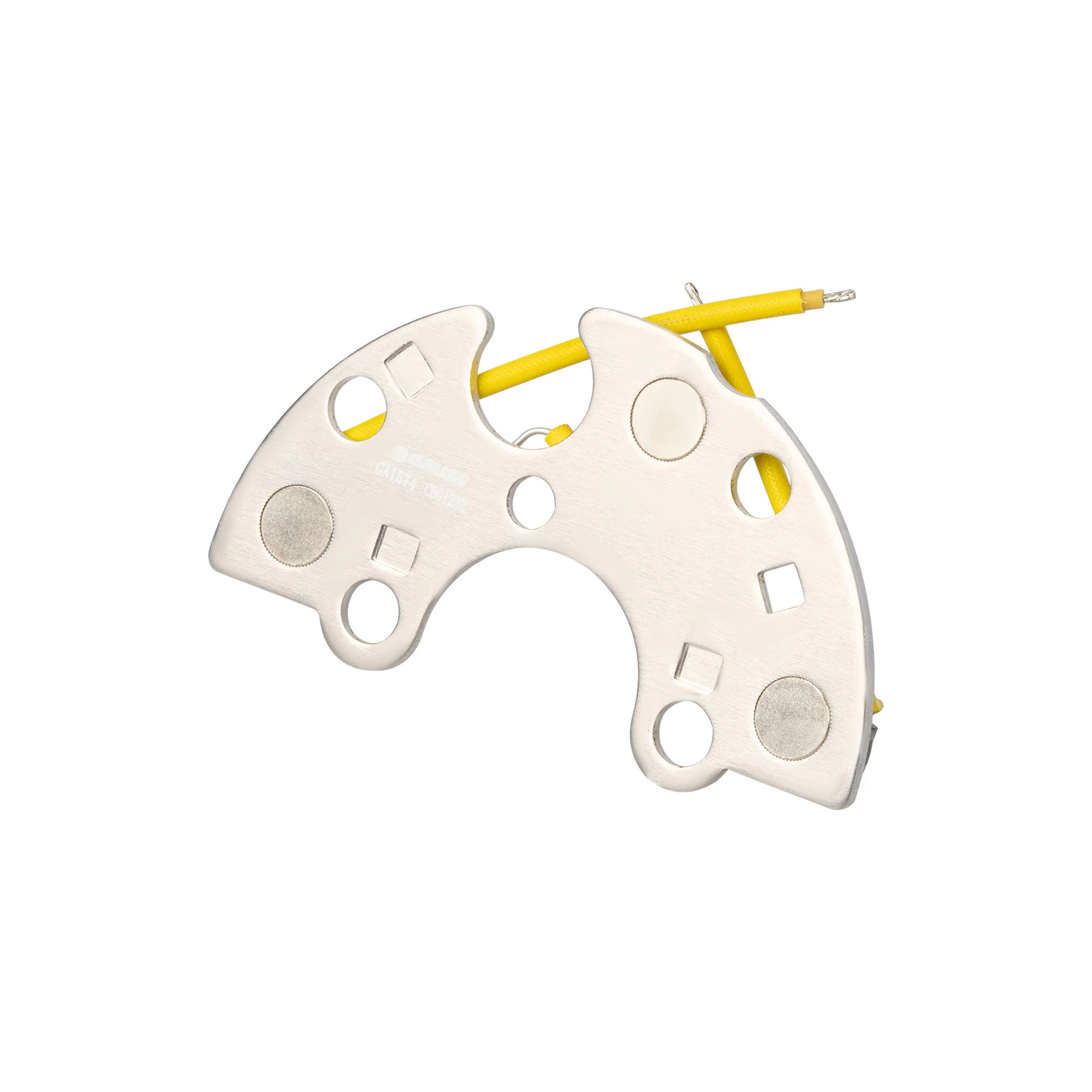

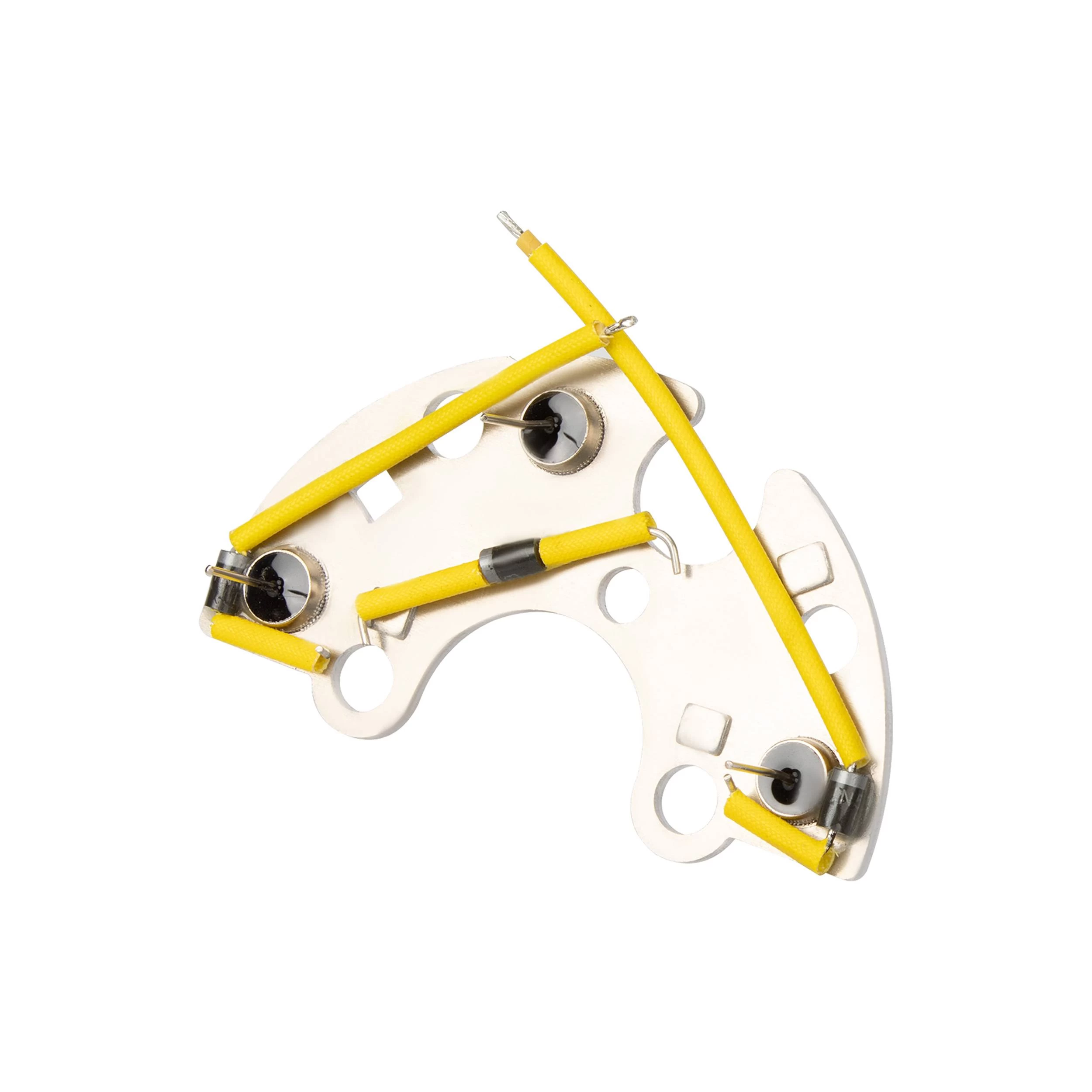

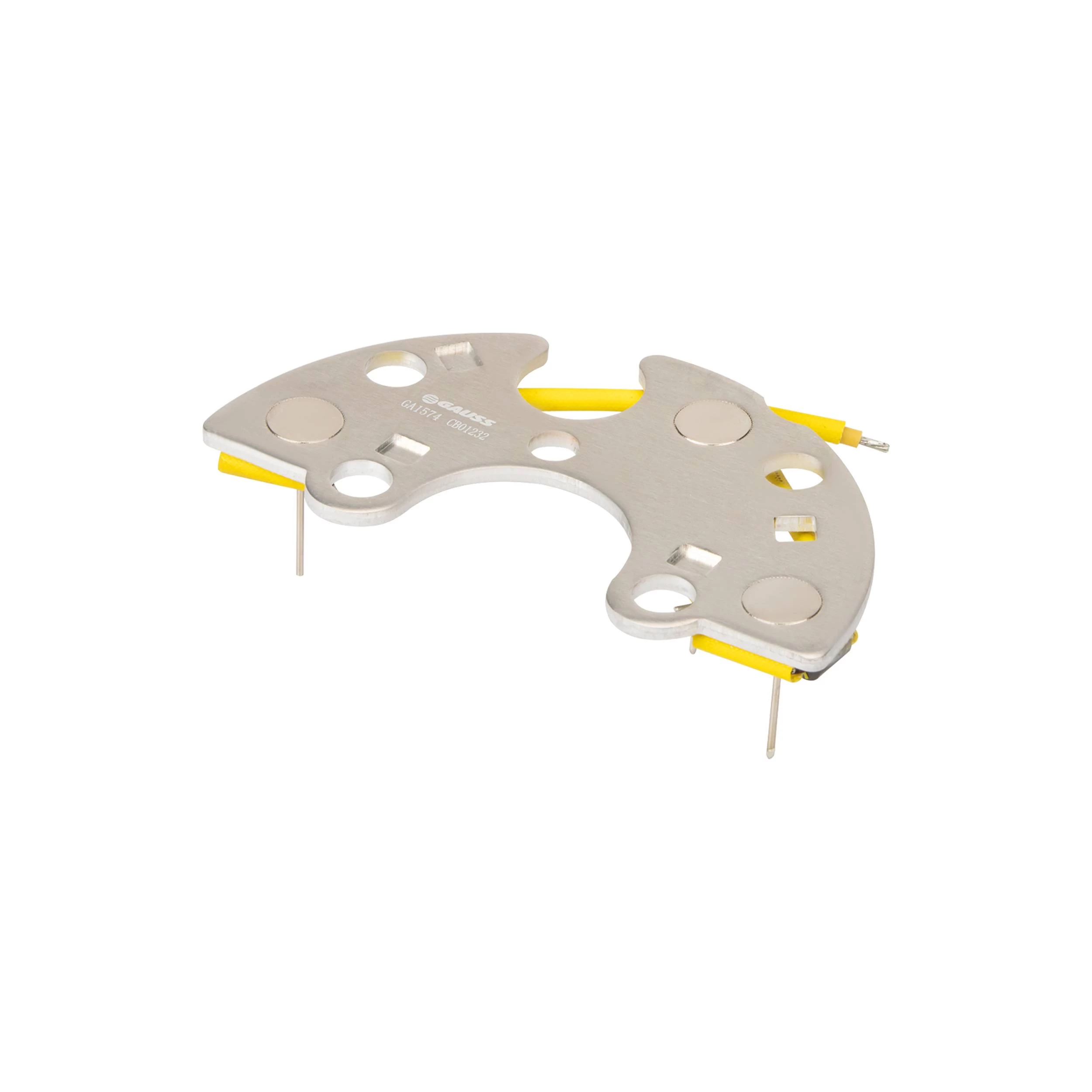

Rectifier - GA1574
Brief Specifications
Current
60A
Alternator Code
BOSCH: 9120450073, 9120450129, 9120450133, 9120450134, 9120450014, 9120450137; WAPSA: AKC16123, AKC14122
Number of Diodes
3X35A
Test Observations
To test the rectifiers, use the regulators testing module

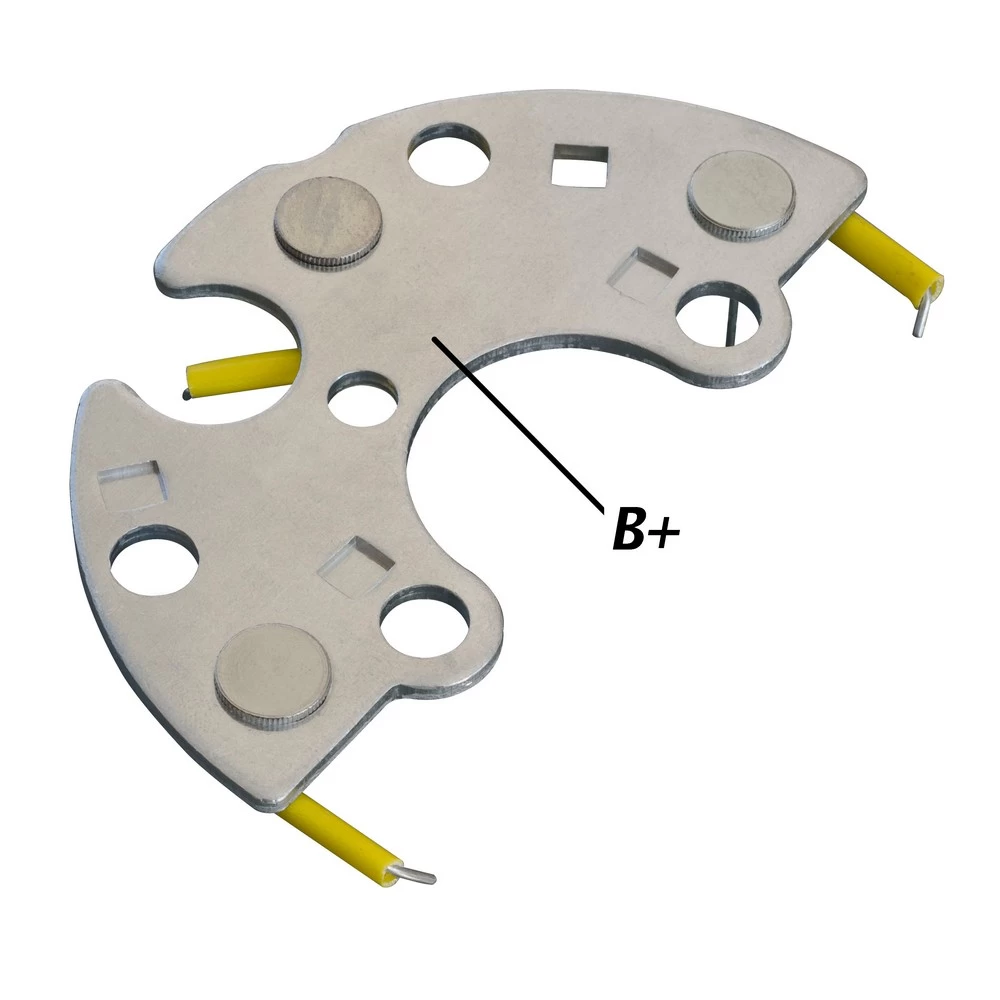

Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Regulator Assembly
GA059
Brief Application
Brand
Model
FORD
Cargo1218
FORD
Cargo1418
FORD
Cargo1618
FORD
Cargo2218
VW
HEAVY SERIES16170
Current
60A
Alternator Code
BOSCH: 9120450073, 9120450129, 9120450133, 9120450134, 9120450014, 9120450137; WAPSA: AKC16123, AKC14122
Number of Diodes
3X35A
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Regulator Assembly
GA059
