Gauss

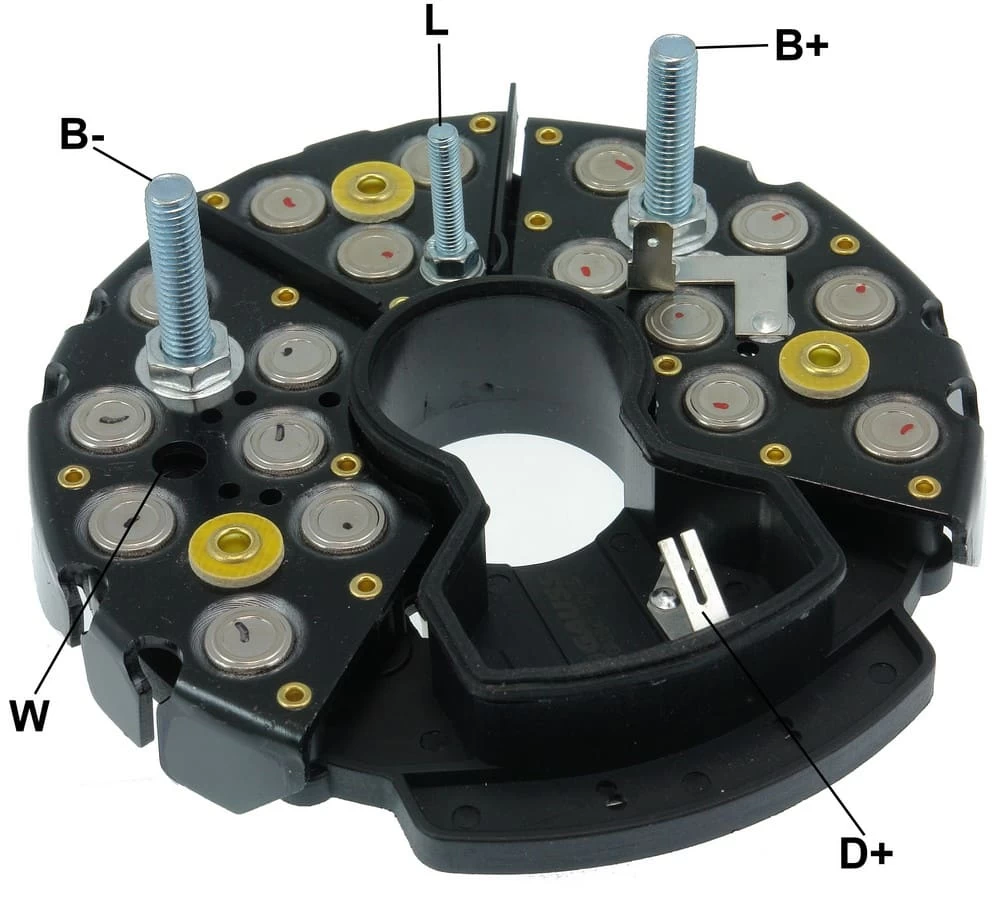

Rectifier - GA1547
Brief Specifications
Type
Avalanche (Zener)
Current
140A
B+ Measurement
M8
Specification
with Resistor
Screw: B- M8
Alternator Code
BOSCH: 0120488158, 0120488159, 9120456001, 9120456003, 9120456008, 9120456010, 9120456011, 9120456012, 9120456014, 9120456028, 9120456031, 9120456032, 9120456033, 9120456034, 9120456036, 9120456037, 9120456038, 9120456039, 9120456040, 9120456041, 9120456042, 9120456043, 9120456044, 9120456046, 9120456047, 9120456048, 9120456050, F006LD0-800
Number of Diodes
14X50A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Negative heat sink test:
• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.
• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA041 / GA042
Brief Application
Brand
Model
FIAT
TEMPRA (159_)
FIAT
TEMPRA S.W. (159_)
MAN
ELEL 202,EL 262
MAN
EMEM 192
MAN
NLNL 202, NL 262, NL 263
MAN
NMNM 152
MAN
NMNM 182, NM 192
MAN
RFRH 362
MAN
RR 292, FR 292, FRH 292
MAN
SDSD 200
Type
Avalanche (Zener)
Current
140A
B+ Measurement
M8
Specification
with Resistor
Screw: B- M8
Alternator Code
BOSCH: 0120488158, 0120488159, 9120456001, 9120456003, 9120456008, 9120456010, 9120456011, 9120456012, 9120456014, 9120456028, 9120456031, 9120456032, 9120456033, 9120456034, 9120456036, 9120456037, 9120456038, 9120456039, 9120456040, 9120456041, 9120456042, 9120456043, 9120456044, 9120456046, 9120456047, 9120456048, 9120456050, F006LD0-800
Number of Diodes
14X50A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Negative heat sink test:
• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.
• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA041 / GA042
