Gauss

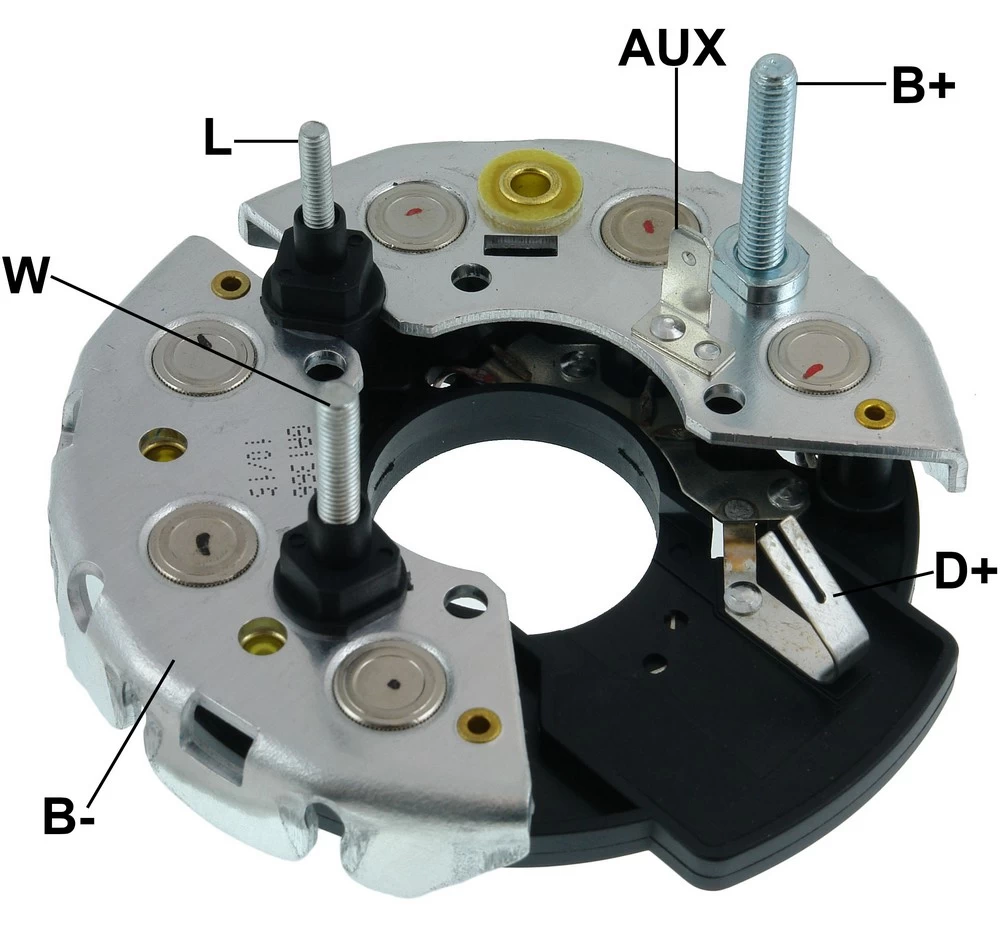

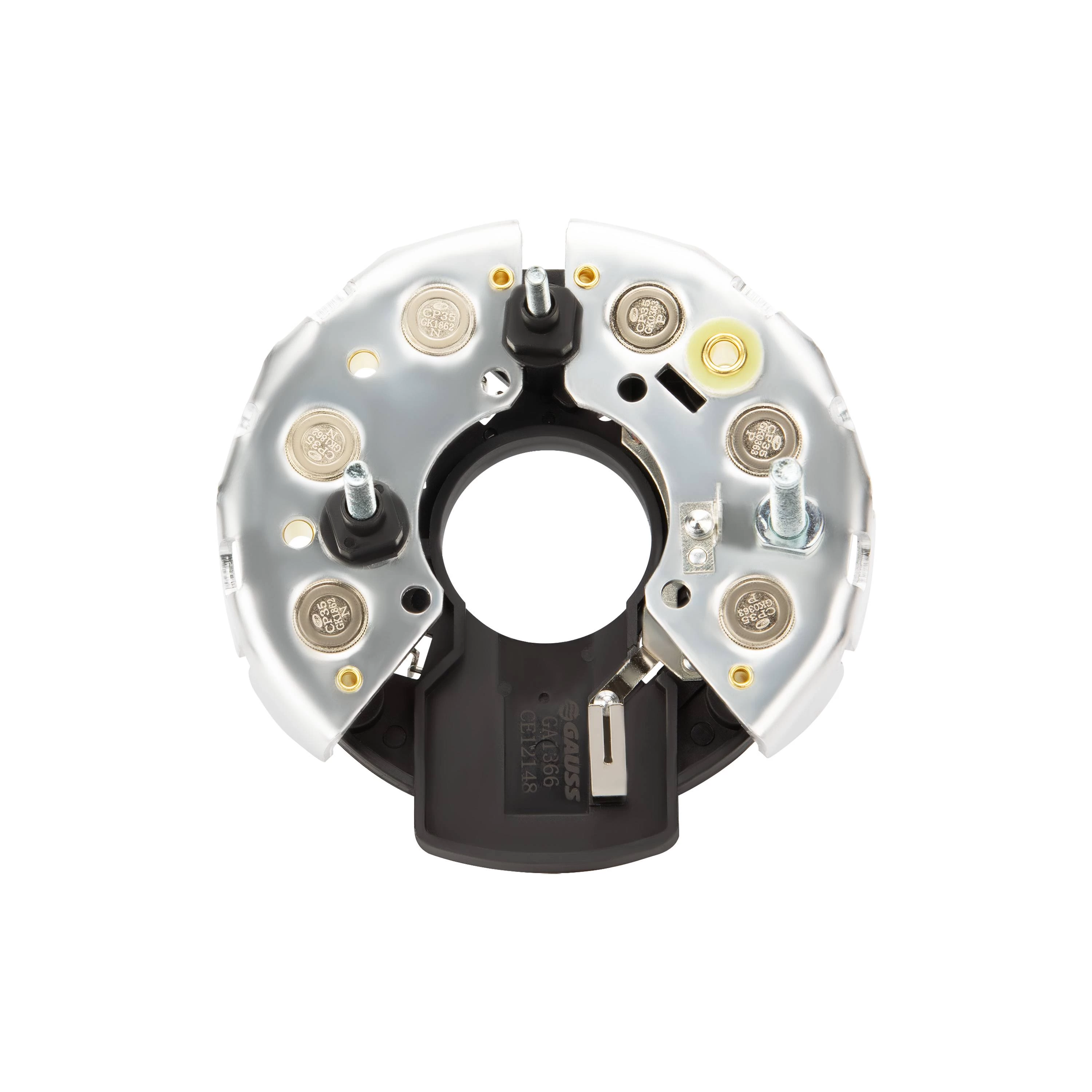

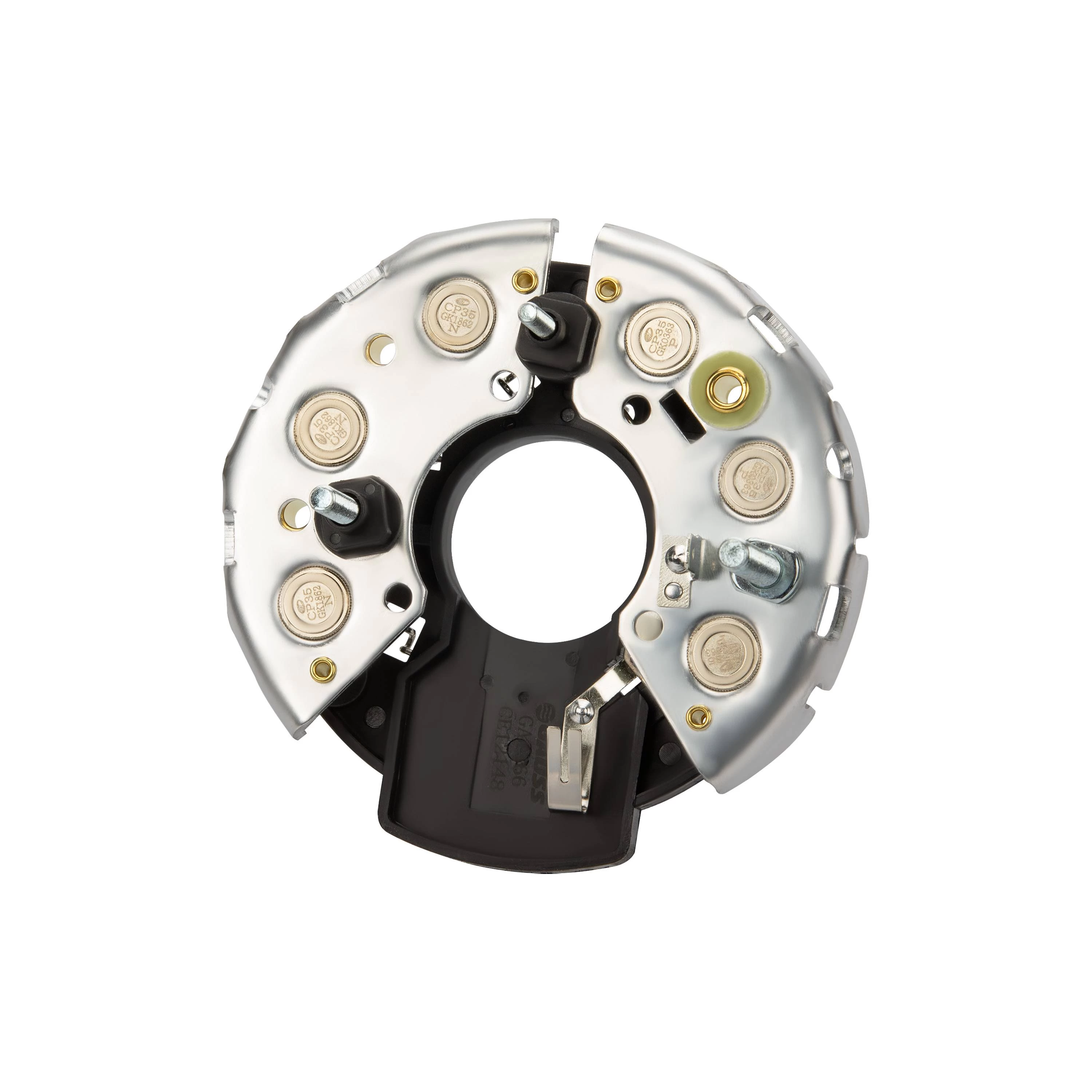

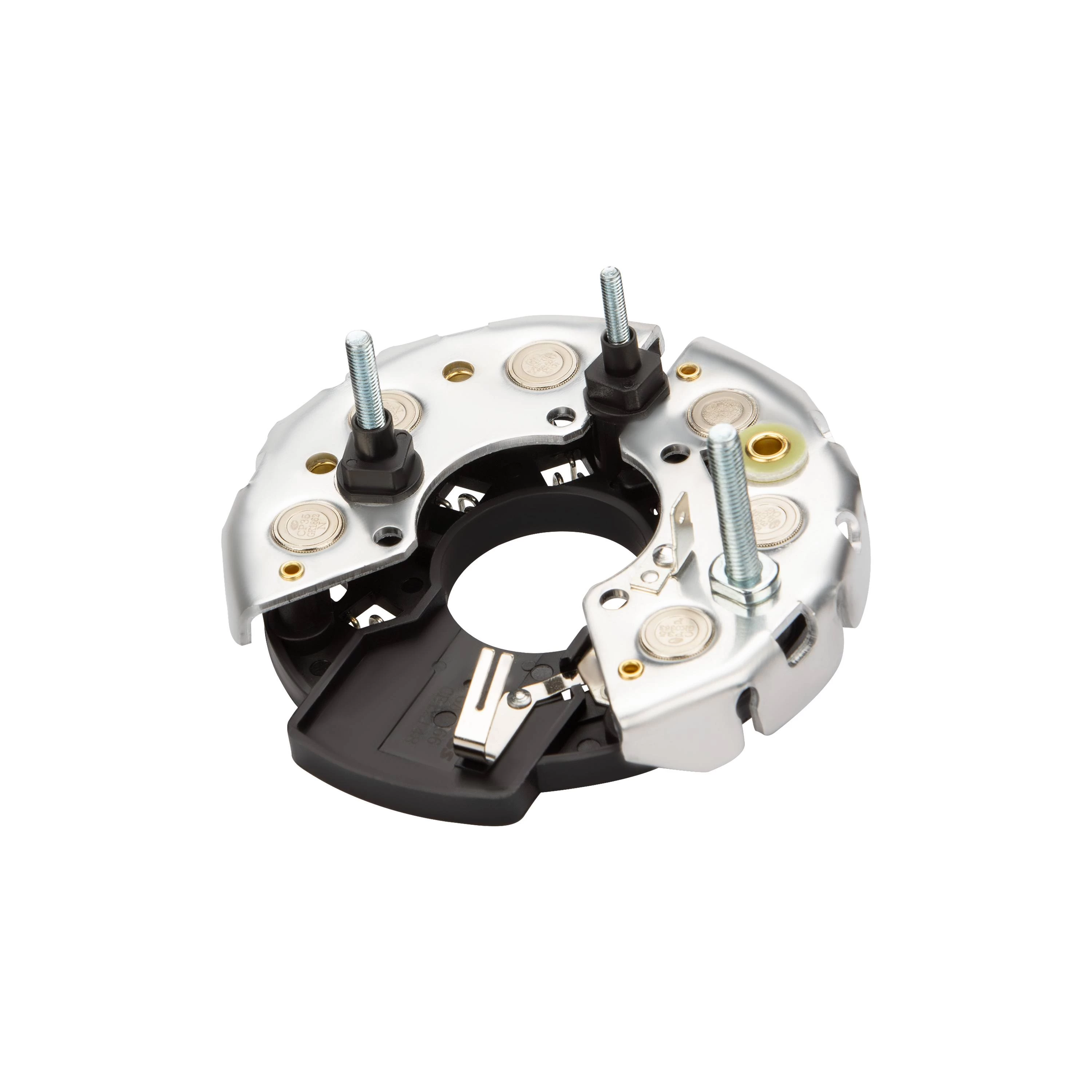

Rectifier - GA1366
Brief Specifications
Current
95A
B+ Measurement
M6x50mm
Alternator Code
BOSCH: 0120489027, 0120489224, 0120489053, 0120489192, 0120489230, 0120489387, 0120489388, 0120489684, 0120489702, 0120489707, 0120489710, 0120489723, 0120489726, 0120489727, 0120489733, 0120489757, 0986030660, 0986031190, 0986031230, 0986031250, 0986031251, 0986031260, 0986031290, 0986031310, 0986031330, 0986033510, 0986033570, 0986034210, 0986034350, 9120144122, 9120144123, 9120144125, 9120144127, 9120144130, 9120144131, 9120144132, 9120144133, 9120144137
Number of Diodes
6X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Negative heat sink test:
• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.
• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Brief Application
Brand
Model
DAF
95FAC 95.380
DAF
F 1300FA 1300 DT
DAF
F 1900FAV 1900 DNT,FAV 1900 NT
DAF
F 2100FAG 2100 DH,FAG 2105 DH
DAF
F 2100FT 2105 DHTD
DAF
F 2300FMT 2305 DHR
DAF
F 2500FMD 2525 DHS
DAF
F 2800FMD 2805 DKTD,FMD 2825 DKTD
DAF
F 2800FT 2805 DKS
DAF
F2000FM 2000 DH
Current
95A
B+ Measurement
M6x50mm
Alternator Code
BOSCH: 0120489027, 0120489224, 0120489053, 0120489192, 0120489230, 0120489387, 0120489388, 0120489684, 0120489702, 0120489707, 0120489710, 0120489723, 0120489726, 0120489727, 0120489733, 0120489757, 0986030660, 0986031190, 0986031230, 0986031250, 0986031251, 0986031260, 0986031290, 0986031310, 0986031330, 0986033510, 0986033570, 0986034210, 0986034350, 9120144122, 9120144123, 9120144125, 9120144127, 9120144130, 9120144131, 9120144132, 9120144133, 9120144137
Number of Diodes
6X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Negative heat sink test:
• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.
• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
