Gauss

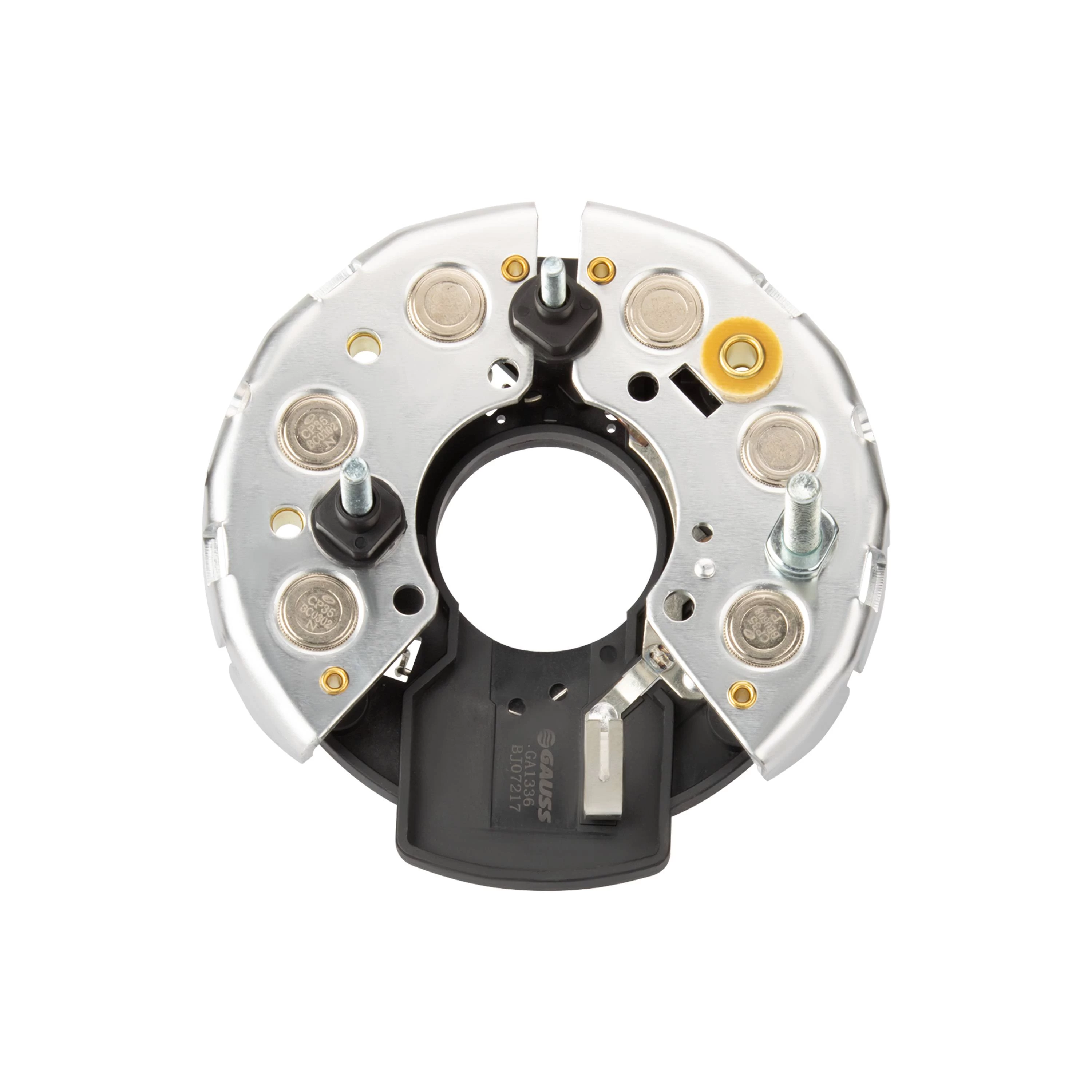

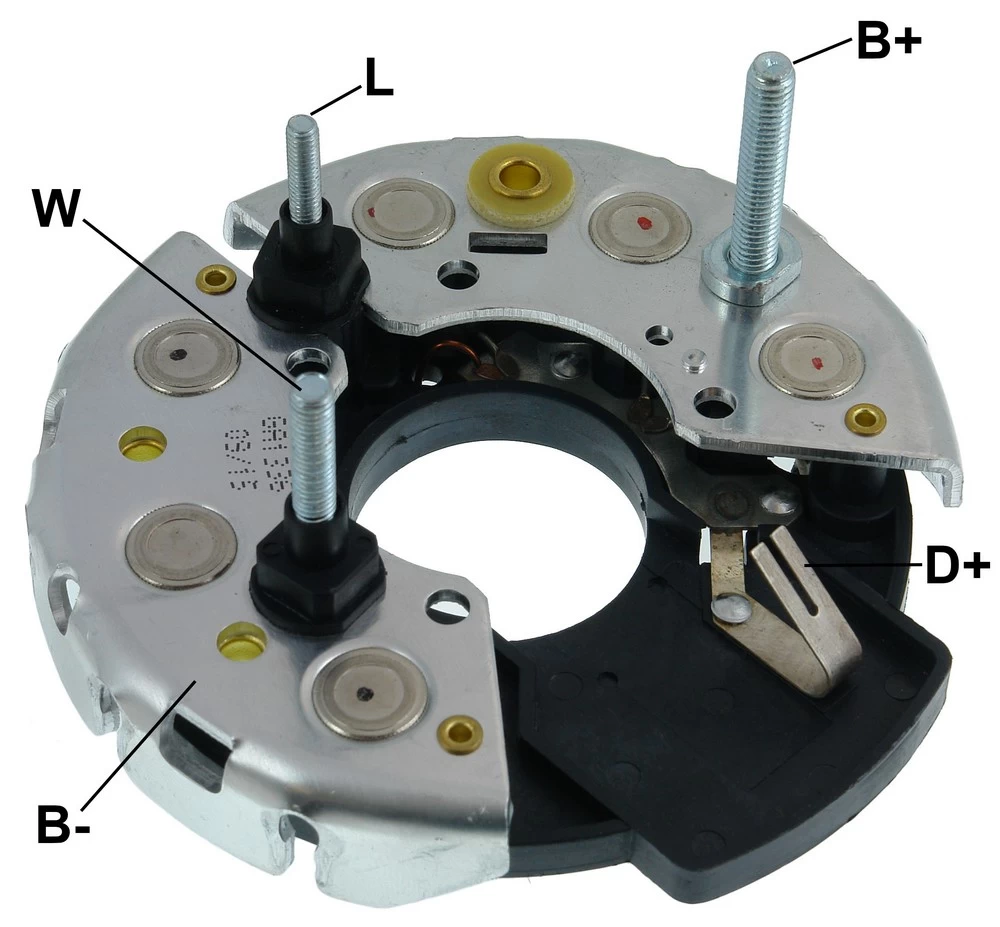

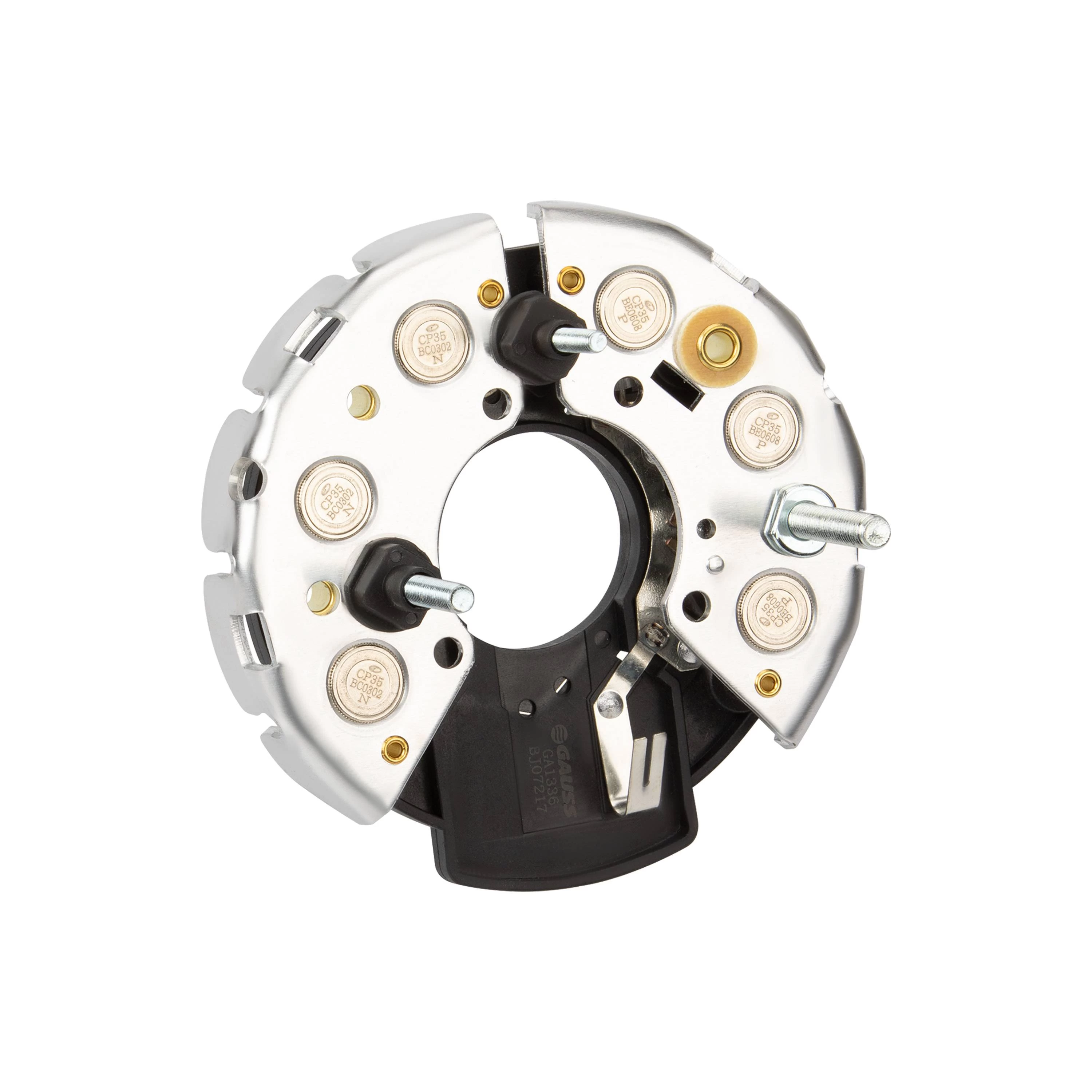

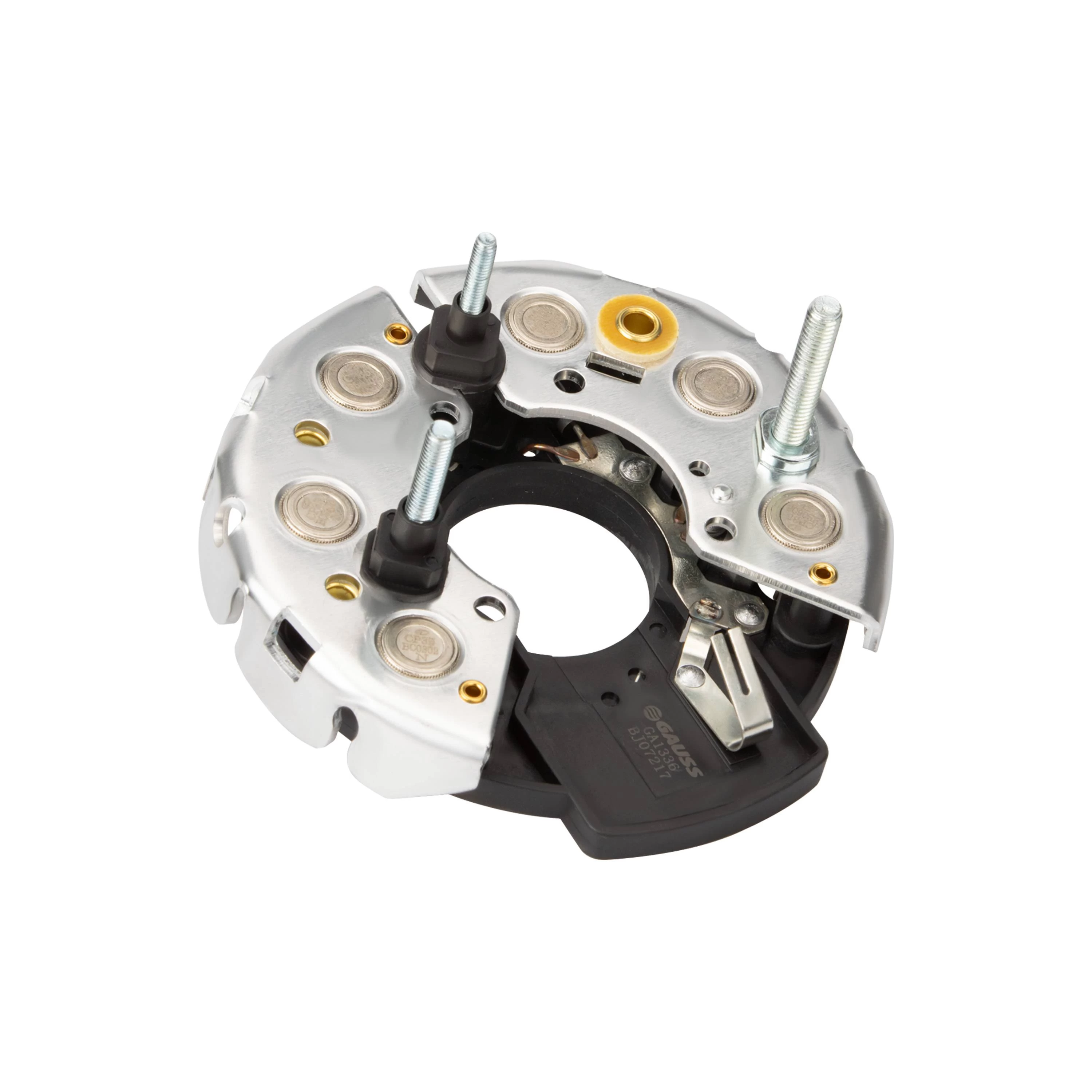

Rectifier - GA1336
Brief Specifications
Current
35A
B+ Measurement
M6x50mm
Specification
Screw: D+ M4x50
Screw: W M5x45
Alternator Code
BOSCH: 9120080148, 9120080147, 9120080502
Number of Diodes
6X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Negative heat sink test:
• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.
• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA040
Brief Application
Brand
Model
MERCEDES-BENZ
T2/L Platform/Chassis
MERCEDES-BENZ
T2/L Van
Current
35A
B+ Measurement
M6x50mm
Specification
Screw: D+ M4x50
Screw: W M5x45
Alternator Code
BOSCH: 9120080148, 9120080147, 9120080502
Number of Diodes
6X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Negative heat sink test:
• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.
• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA040
