Gauss

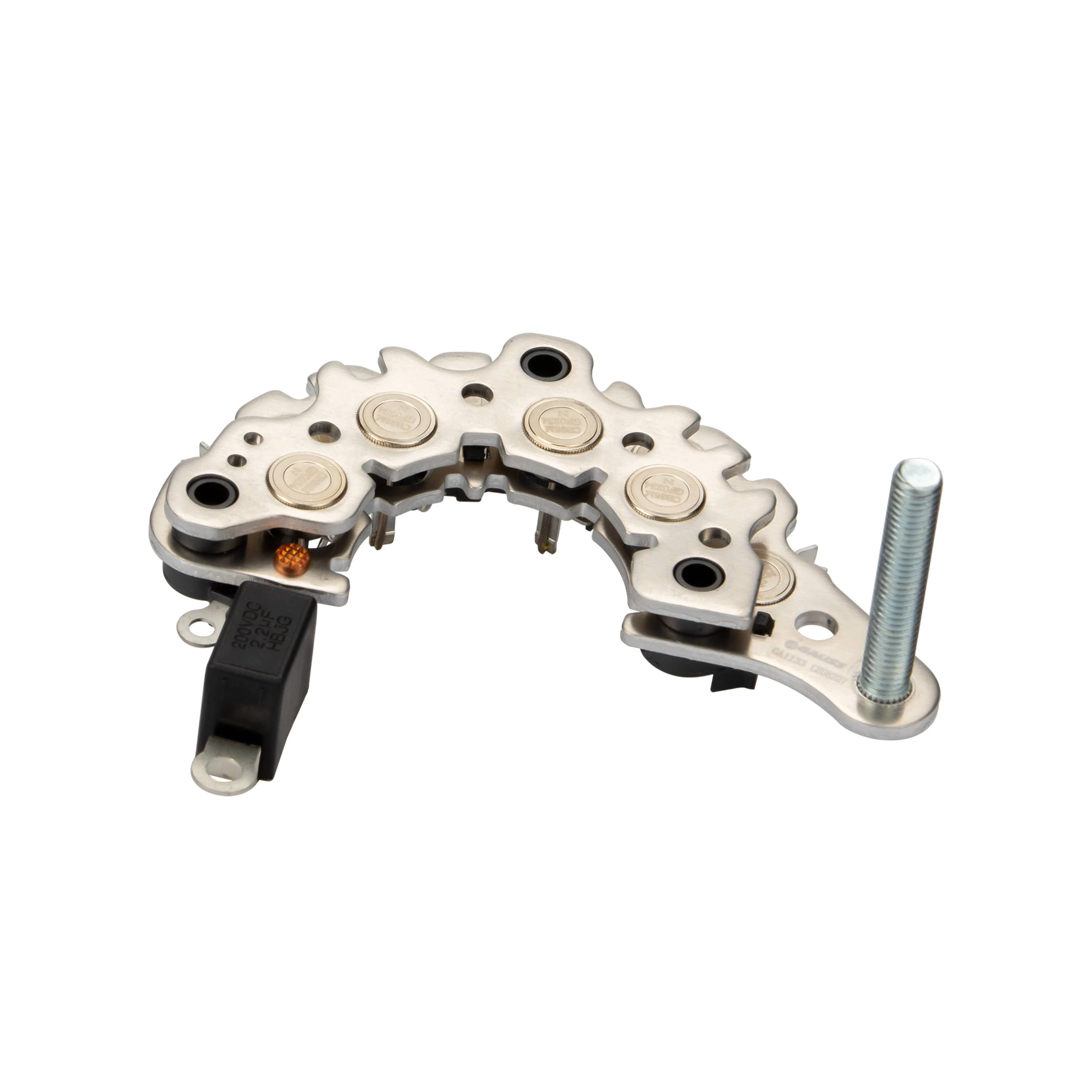

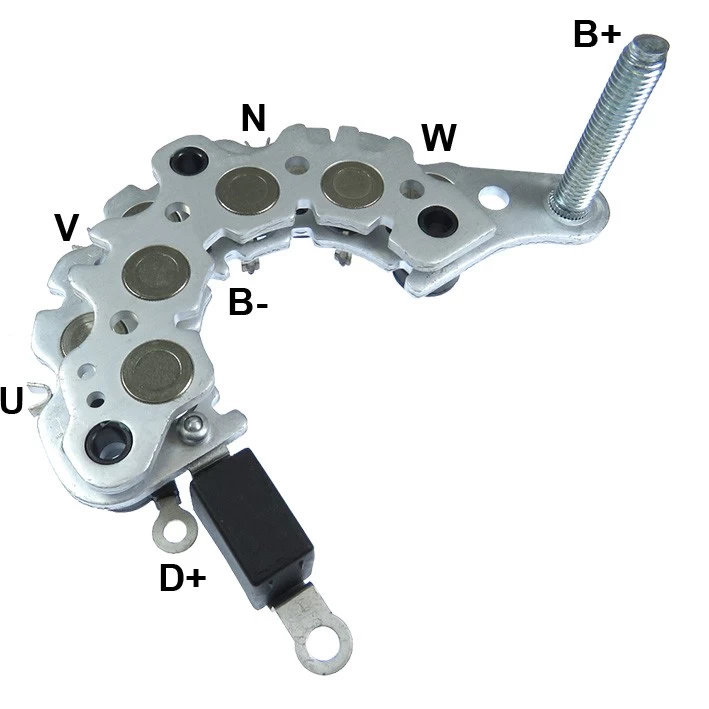

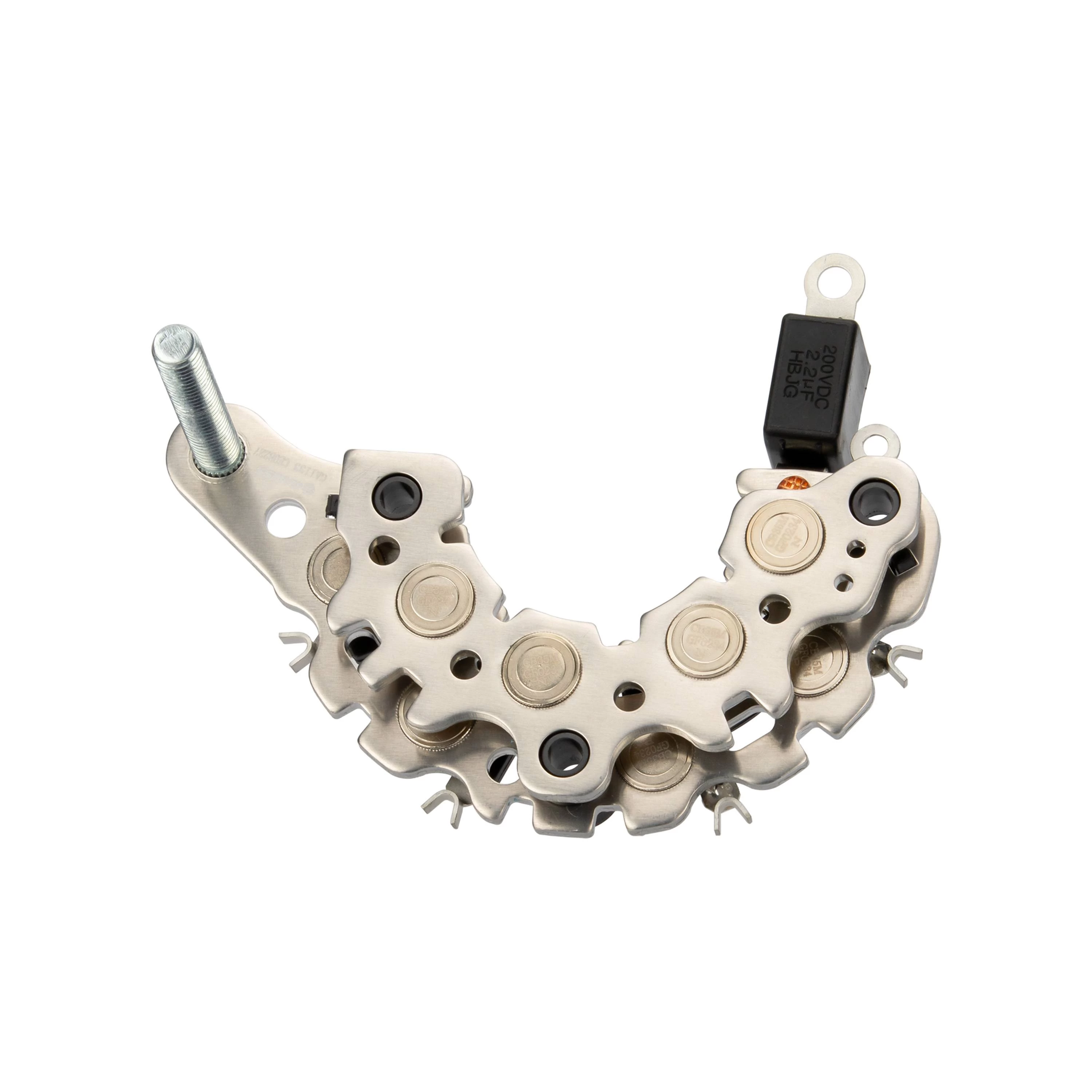

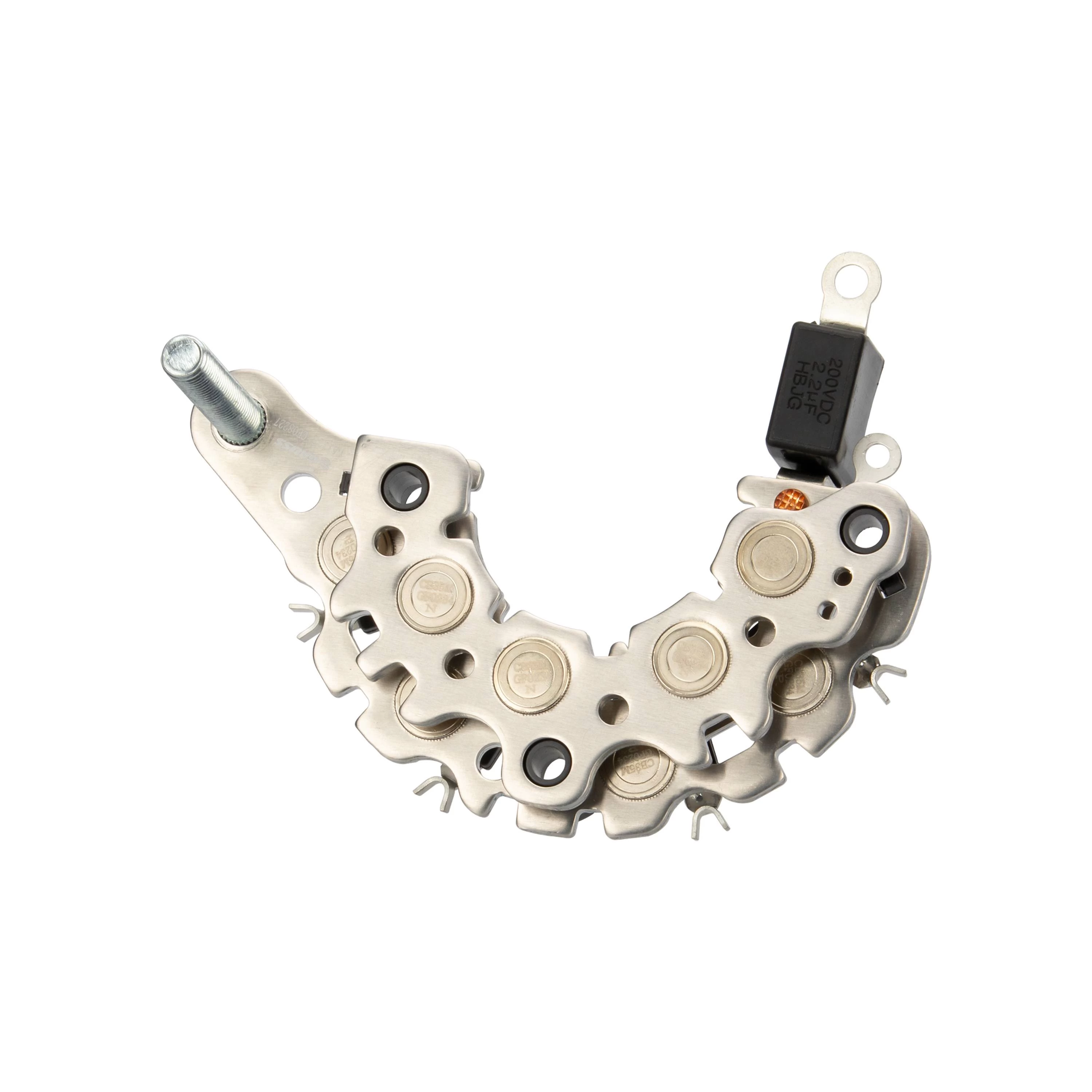

Rectifier - GA1133
Brief Specifications
Type
Avalanche
Current
120A
Comments
with Capacitor
B+ Measurement
M8X42.5mm
Alternator Code
HYUNDAI / KIA: 37300-27010, 37300-27012, 37300-27020, 37300-27021, 37300-27030, 37300-27031
MARELLI: 063532622010, 063532622010
POONGSUNG: 02131-9110, 02131-9111, 02131-9112, 02131-9261, 02131-9262, 02131-9310
VALEO: 440119
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Negative heat sink test:
• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.
• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Brief Application
Brand
Model
HYUNDAI
ELANTRA III (XD)
HYUNDAI
ELANTRA III Saloon (XD)
HYUNDAI
i30 (FD)
HYUNDAI
i30 Station Wagon (FD)
HYUNDAI
SANTA FÉ I (SM)
HYUNDAI
SANTA FÉ II (CM)
HYUNDAI
SONATA V (NF)
HYUNDAI
SONATA VI (YF)
HYUNDAI
TRAJET (FO)
HYUNDAI
TUCSON (JM)
Type
Avalanche
Current
120A
Comments
with Capacitor
B+ Measurement
M8X42.5mm
Alternator Code
HYUNDAI / KIA: 37300-27010, 37300-27012, 37300-27020, 37300-27021, 37300-27030, 37300-27031
MARELLI: 063532622010, 063532622010
POONGSUNG: 02131-9110, 02131-9111, 02131-9112, 02131-9261, 02131-9262, 02131-9310
VALEO: 440119
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Negative heat sink test:
• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.
• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
