Gauss

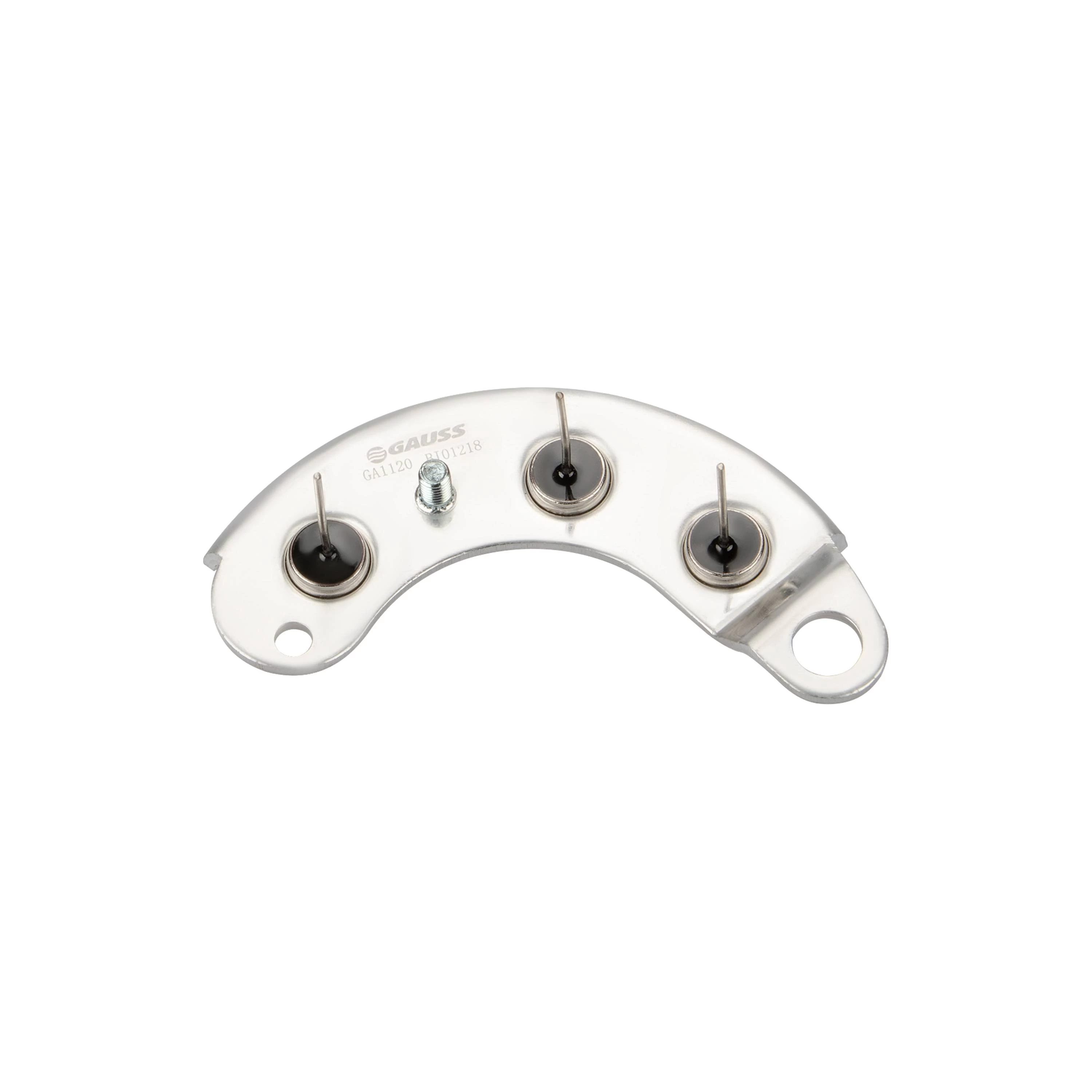

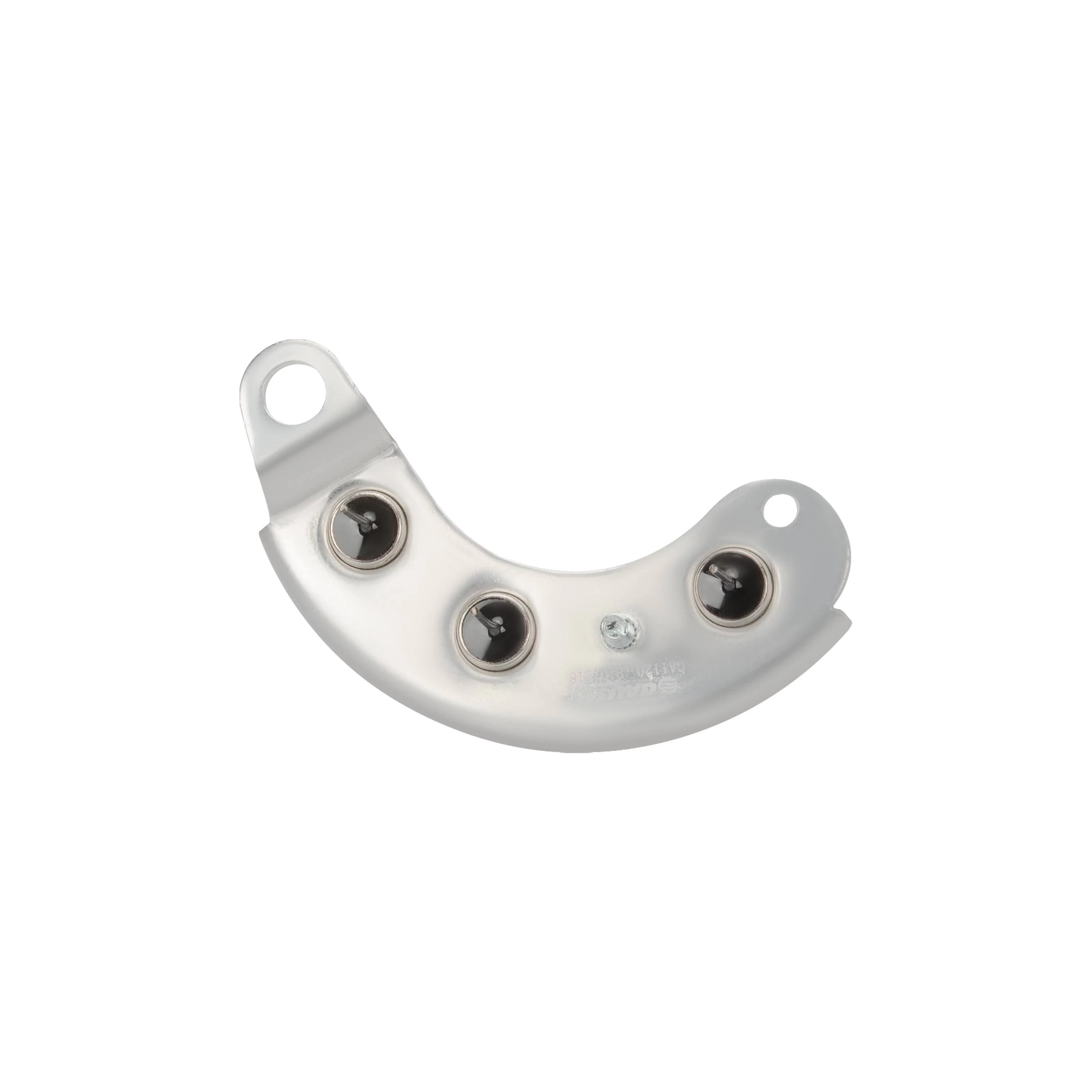

Rectifier - GA1120
Brief Specifications
Current
50A
Comments
Negative Plate
Compatible with GA1274
Number of Diodes
3X35A
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
Brief Application
Brand
Model
FORD
ESCORT III (GAA)
FORD
ESCORT IV (GAF, AWF, ABFT)
FORD
ESCORT V (AAL, ABL)
VW
GOL G2
VW
GOL G3
VW
GOL G4
VW
GOL G5
VW
GOL G6
VW
GOL G7
VW
SAVEIRO G1 (147)
Current
50A
Comments
Negative Plate
Compatible with GA1274
Number of Diodes
3X35A
Test Observations
To test the rectifiers, use the regulators testing module
Positive heat sink test:
• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.
• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.
