Gauss

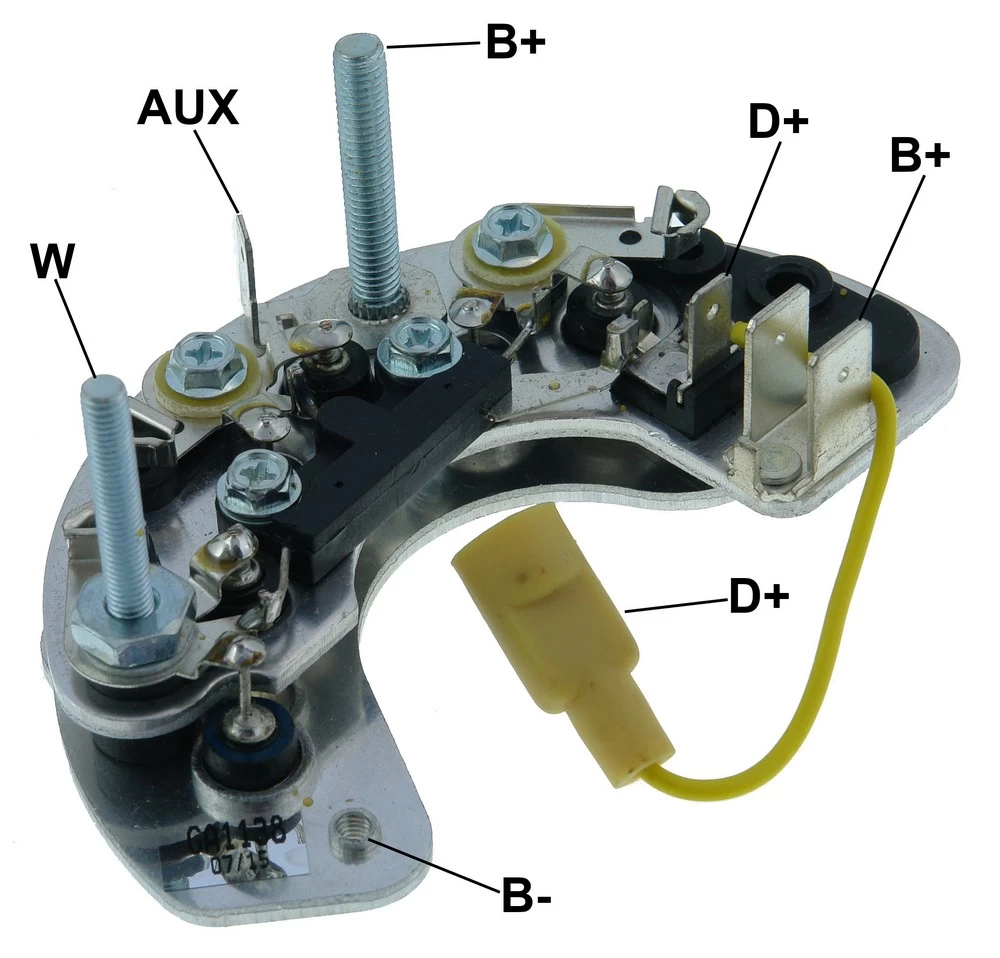

Rectifier - GA1138
Brief Specifications
Current
85A
Alternator Code
LUCAS: 24129, 24145, 24145A, 24145D, 24156, 24157, 24157AVE, 24158, 24161, 24161A, 24169, 24198, 24198A, 24198B, 24198E, 24199, 24199A, 24199B, 24200, 24200A, 24208, 24240, 24245, 24246, 24246B, 24256, 24256A, 24256B, 24256C, 24256D, 24273, 24273A, 24274, 24274D, 24276, 24277, 24294, 24294B, 24327, 24327A, 51022337D, 54022053, 54022054, 54022058A, 54022058B, 54022059, 54022060A, 54022096, 54022097A, 54022097B, 54022108, 54022109, 54022162, 54022167, 54022178, 54022182, 54022186, 54022188, 54022191, 54022192, 54022193, 54022193, 54022195, 54022196, 54022196B, 54022206, 54022211, 54022212, 54022214, 54022217, 54022218, 54022219, 54022220, 54022225, 54022225A, 54022226, 54022227, 54022228, 54022229, 54022234D
Number of Diodes
6X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing modulePositive heat sink test:• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.Negative heat sink test:• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA148
Brief Application
Brand
Model
AUSTIN
MONTEGO (XE)
FORD
ESCORT III (GAA)
FORD
ESCORT IV (GAF, AWF, ABFT)
FORD
ESCORT IV Convertible (ALF)
FORD
ESCORT V (AAL, ABL)
FORD
ESCORT V Convertible (ALL, BJ2)
FORD
ESCORT VI (GAL, AAL, ABL)
FORD
ESCORT VI Turnier (GAL, ANL)
FORD
FIESTA III (GFJ)
FORD
FIESTA IV (JA_, JB_)
Current
85A
Alternator Code
LUCAS: 24129, 24145, 24145A, 24145D, 24156, 24157, 24157AVE, 24158, 24161, 24161A, 24169, 24198, 24198A, 24198B, 24198E, 24199, 24199A, 24199B, 24200, 24200A, 24208, 24240, 24245, 24246, 24246B, 24256, 24256A, 24256B, 24256C, 24256D, 24273, 24273A, 24274, 24274D, 24276, 24277, 24294, 24294B, 24327, 24327A, 51022337D, 54022053, 54022054, 54022058A, 54022058B, 54022059, 54022060A, 54022096, 54022097A, 54022097B, 54022108, 54022109, 54022162, 54022167, 54022178, 54022182, 54022186, 54022188, 54022191, 54022192, 54022193, 54022193, 54022195, 54022196, 54022196B, 54022206, 54022211, 54022212, 54022214, 54022217, 54022218, 54022219, 54022220, 54022225, 54022225A, 54022226, 54022227, 54022228, 54022229, 54022234D
Number of Diodes
6X35A
Diode Replacement
Yes
Test Observations
To test the rectifiers, use the regulators testing modulePositive heat sink test:• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.Negative heat sink test:• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA148
