Gauss

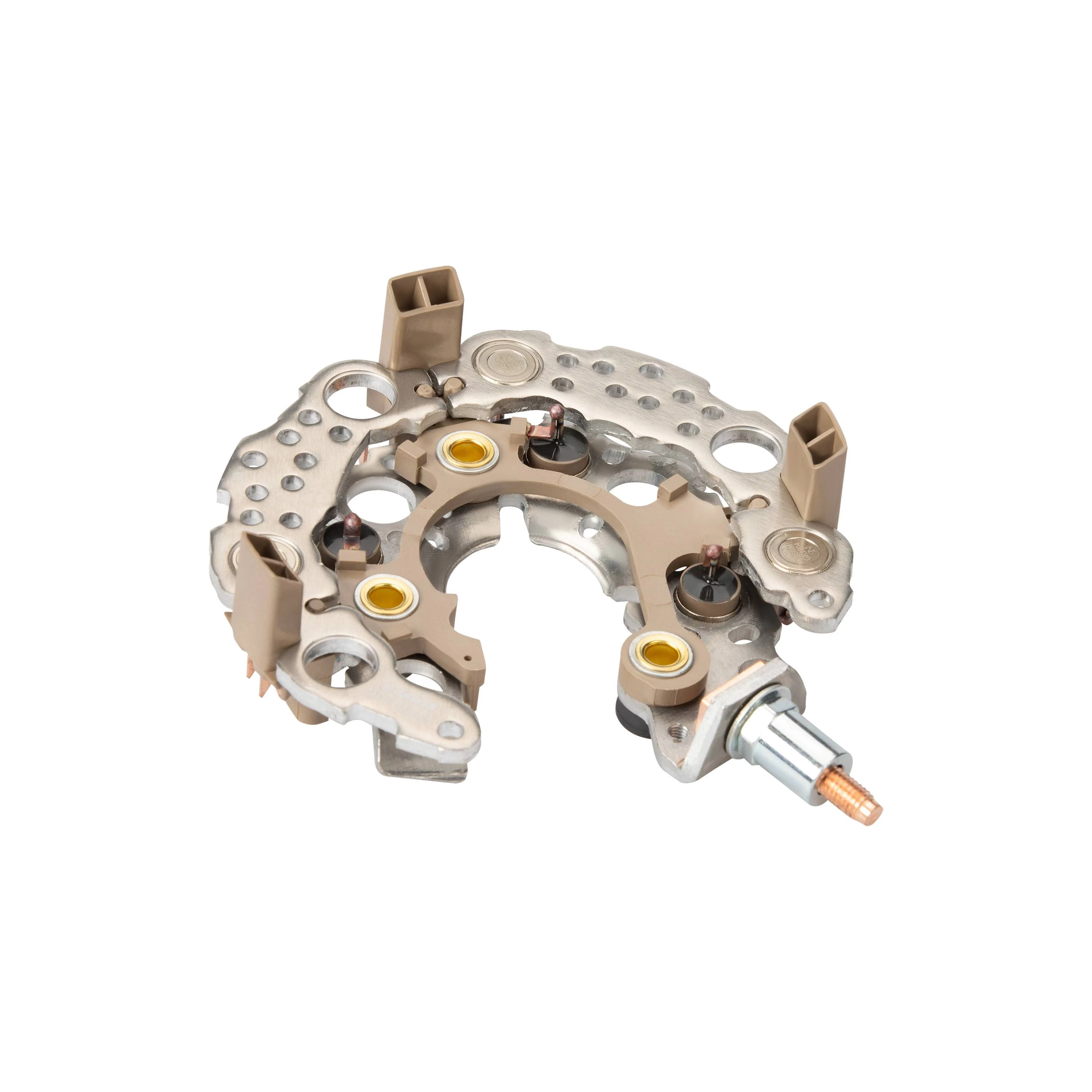

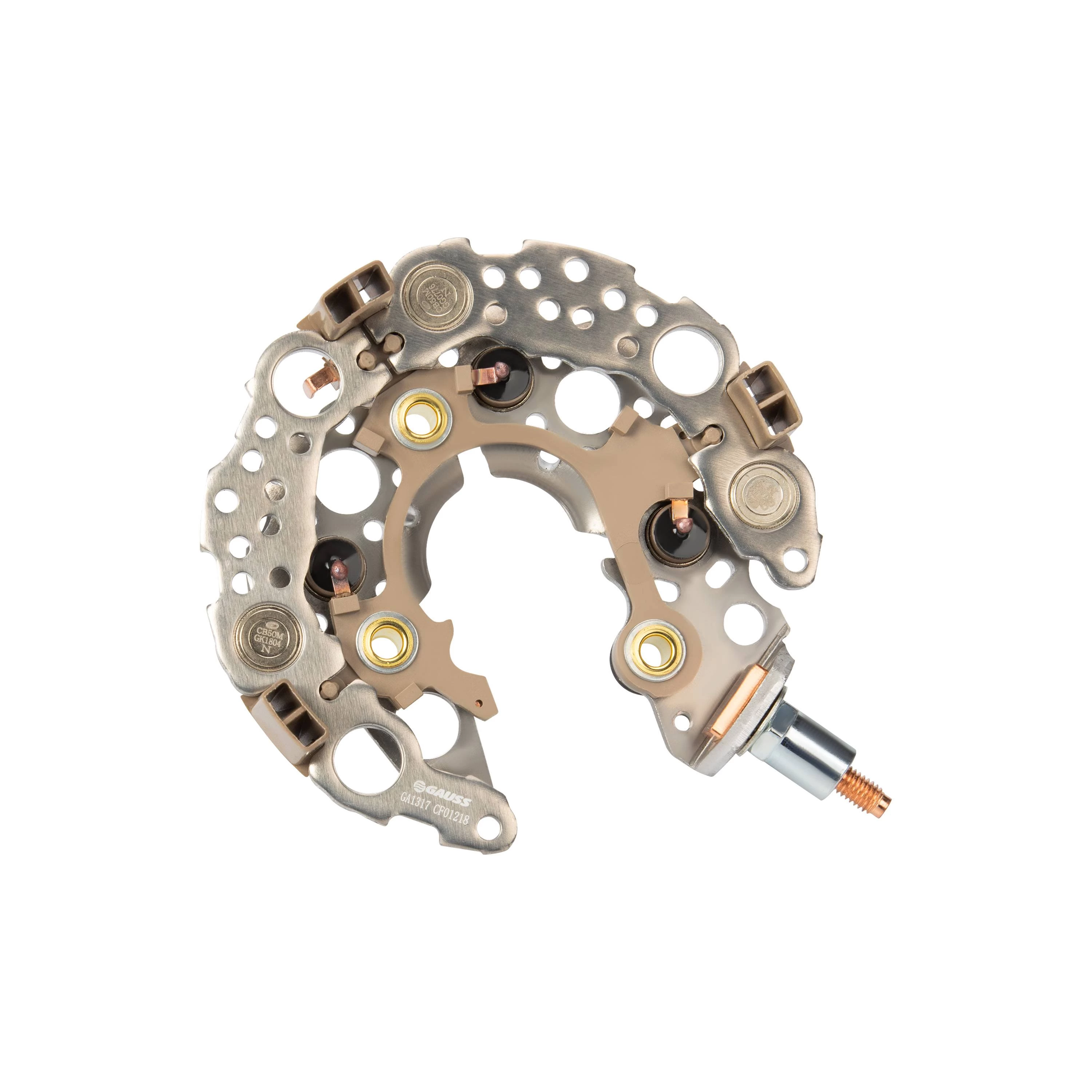

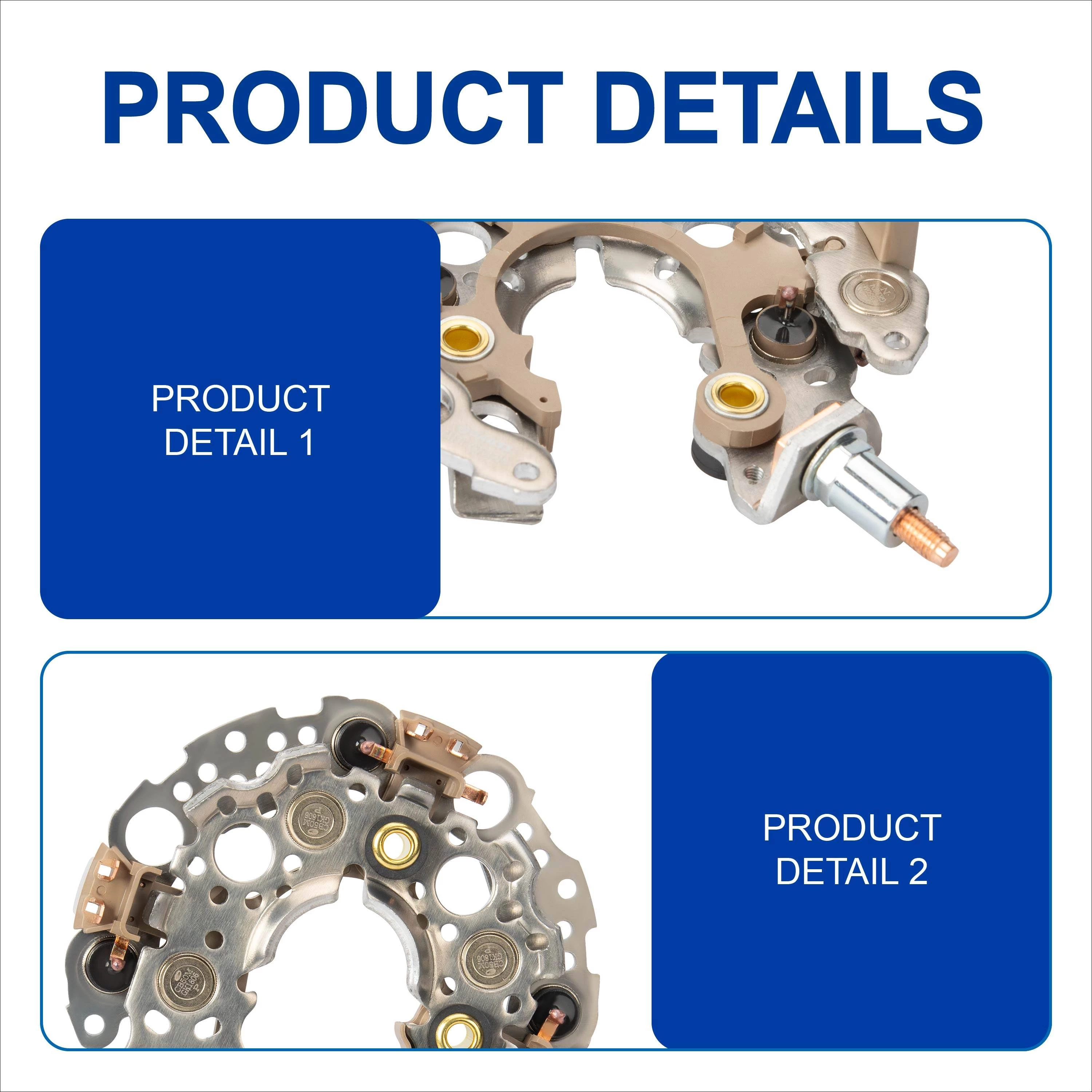

Rectifier - GA1317
Brief Specifications
Type
Avalanche
Current
120A
Diameter
Ø117mm

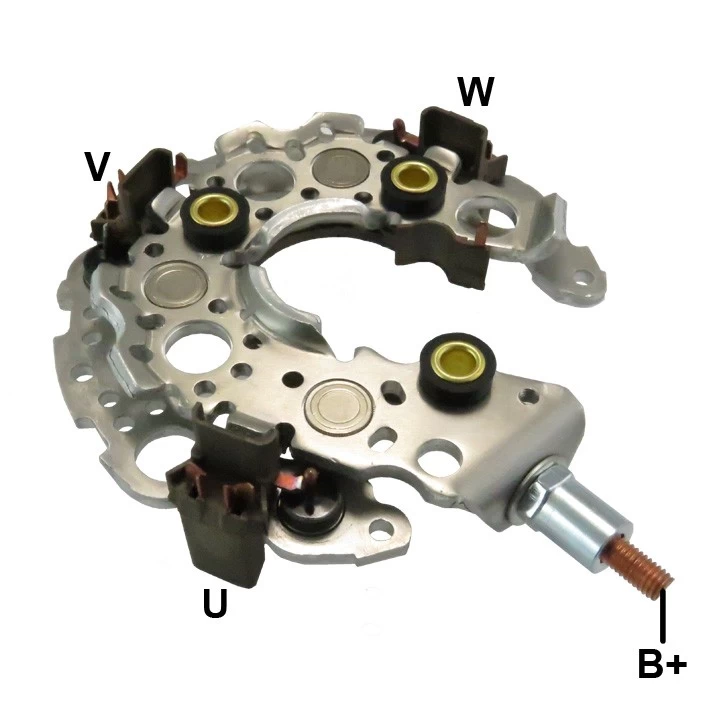

B+ Measurement
M6X11mm
Alternator Code
DENSO: 104210-5481, 104210-2802;TOYOTA: 27060-37081, 27060-37042
Number of Diodes
6X50A
Test Observations
To test the rectifiers, use the regulators testing modulePositive heat sink test:• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.Negative heat sink test:• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA147
Brief Application
Brand
Model
TOYOTA
AURIS (_E15_)
TOYOTA
COROLLA Saloon (_E15_)
TOYOTA
COROLLA Station Wagon (_E12_)
Type
Avalanche
Current
120A
Diameter
Ø117mm
B+ Measurement
M6X11mm
Alternator Code
DENSO: 104210-5481, 104210-2802;TOYOTA: 27060-37081, 27060-37042
Number of Diodes
6X50A
Test Observations
To test the rectifiers, use the regulators testing modulePositive heat sink test:• Connect the black cable to the positive heat sink and touch the tip of the orange cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the orange cable to each phase.• Reverse the connections, securing the orange cable to the positive heat sink and touch the tip of the black cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the black cable to each phase.Negative heat sink test:• Connect the orange cable to the negative heat sink and touch the tip of the black cable to each of the phases (U, V, W). The “PILOT” lamp should come on when touching the black cable to each phase.• Reverse the connections, securing the black cable to the negative heat sink and touch the tip of the orange cable to each of the phases (U, V, W). Now the “PILOT” lamp should not light up when touching the orange cable to each phase.
Regulator Assembly
GA147
